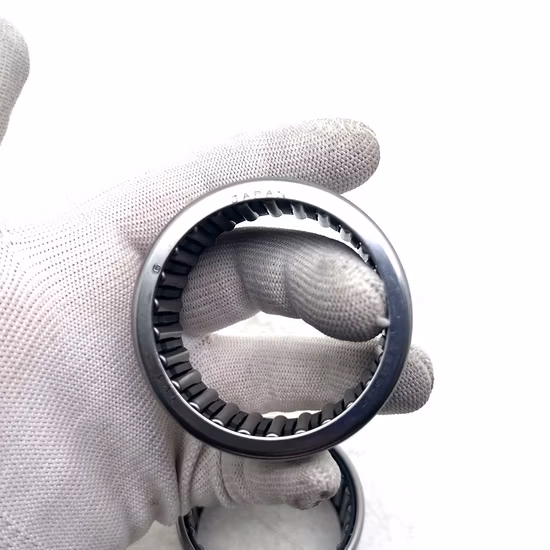

X&S TAF-162420 Needle Roller Bearing for Spare Parts

Authentic QR Verification — Every X&S TAF-162420 needle roller bearing batch includes scannable codes linking directly to the manufacturer’s official authenticity database.

Technical Specifications

TAF and TAF1 are unverified suffixes — requires manufacturer catalog confirmation for exact dimensional boundaries.

Application Suitability

Why Ignoring Inner Ring Configurations Destroys Needle Roller Bearings

Matching the base number without verifying the inner ring requirement guarantees premature shaft scoring.

Sourcing teams frequently treat TAF and TAF1 designations as interchangeable during cross-referencing. This oversight leads to installing open-type needle cages directly onto shafts that lack the necessary surface hardness, causing rapid wear and catastrophic seizure under radial loads. Procurement engineers must recognize that an X&S TAF-162420 needle roller bearing without an inner ring demands a fully hardened and ground shaft journal, whereas the TAF1 variants provide their own precision-machined inner raceway. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Matching Radial Compactness to Transmission Constraints

Needle roller assemblies excel where radial space is severely restricted but high load capacity remains mandatory. The X&S TAF-162420 needle roller bearing series delivers this compact footprint through a high density of cylindrical rolling elements. Our technical review process ensures that the selected open-type configuration aligns perfectly with your housing bore and shaft diameter tolerances, preventing the internal binding that plagues poorly specified MRO replacements.

Navigating Thermal Expansion and Lubrication Boundaries

Open-type separated designs rely entirely on the host application for lubrication and contamination control. In gearbox environments, oil splash or forced circulation is mandatory to flush wear debris from the needle cage. Operating temperatures dictate the internal clearance selection; a standard C0 clearance will bind thermally in high-speed spindle applications, necessitating a C3 or C4 expansion allowance. [NEED_CITE: thermal expansion effects on bearing internal clearance]

Decoding the TAF and TAF1 Structural Divide

The fundamental distinction within this series lies in the inner ring configuration. TAF models operate directly on the shaft, requiring the journal to achieve equivalent hardness to standard bearing steel. TAF1 models integrate a hardened inner ring, making them suitable for softer shaft materials or applications where shaft re-grinding is economically unfeasible. Furthermore, the available precision matrix from P0 to P2 dictates the running accuracy, which is critical for minimizing vibration in machine tool indexing tables.

The Hidden Toll of Suffix and Clearance Mismatches

Substituting a standard clearance needle bearing into a high-temperature gearbox leads to thermal binding and cage fracture. These failures trigger unplanned downtime, secondary damage to adjacent gears, and complete voidance of equipment warranties. Relying on visual inspection rather than verifying the exact clearance and precision suffixes against the original engineering drawings consistently results in severe operational disruptions. [NEED_CITE: consequences of incorrect bearing clearance selection]

Securing Precision Through Verified Supply Channels

Our cross-reference methodology strictly aligns the base designation, inner ring configuration, and clearance suffixes to prevent field failures. We provide full batch traceability for every X&S TAF-162420 needle roller bearing, ensuring the metallurgy matches the required load ratings. By verifying the exact cage material and separation design against your OEM specifications, we eliminate the risk of receiving visually identical but dimensionally incompatible aftermarket substitutes.

Documentation & Authenticity

• Certificate of Conformity detailing the specific TAF or TAF1 configuration.
• Batch traceability linking the needle cage to the original forging lot.
• Official app QR verification for instant authenticity checks on arrival.
• Material test report confirming bearing steel hardness specifications.
• Dimensional inspection validating the selected P0 through P2 precision class.

Storage, Handling & Mounting

• Retain original VCI packaging to prevent corrosion on the open needle cage.
• Verify shaft journal hardness before mounting TAF variants without inner rings.
• Use induction heating strictly on TAF1 inner rings, avoiding direct cage heating.
• Apply clean gloves to prevent moisture transfer to the exposed rolling elements.
• Flush the housing thoroughly before installation to protect the unsealed design.

Preparing Your Technical Inquiry

To ensure accurate selection and L10 life verification, provide the exact radial loads, operating speeds, and thermal environment of your application. If replacing an existing unit, share the OEM equipment number and the exact shaft journal hardness. Supplying these parameters allows our engineering team to confirm whether a TAF or TAF1 configuration, along with the appropriate clearance class, will deliver reliable performance.

Frequently Asked Questions

Q: Why must I confirm shaft hardness when using TAF models without an inner ring?
A: TAF models run directly on the shaft journal. If the shaft lacks adequate hardness and surface finish, the needle rollers will rapidly score the metal, leading to premature failure. TAF1 models include a hardened inner ring, bypassing this requirement for softer shaft materials.

Q: How do I select the correct clearance class for high-temperature gearboxes?
A: Standard C0 clearance may cause thermal binding when internal temperatures rise during operation. For elevated temperatures, a C3 or C4 clearance provides the necessary internal expansion room, preventing the needle cage from seizing under thermal growth.

Q: What lubrication is required for these open-type needle roller bearings?
A: Open designs require continuous external lubrication, typically via oil splash or forced circulation in gearboxes, to cool the needles and flush wear debris. Grease lubrication is only viable if the housing design allows for regular re-lubrication cycles.

Q: How can I verify the authenticity of the supplied needle bearings?
A: Every shipment includes scannable QR codes that link directly to the manufacturer’s official database. This allows you to verify the batch origin, material certification, and dimensional inspection reports before installation.
