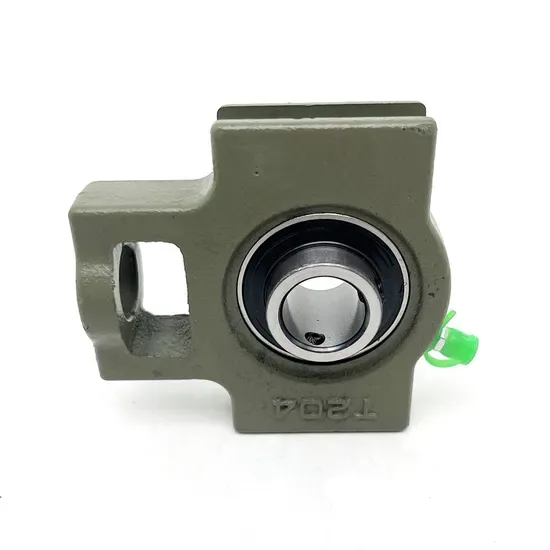

X&S UCT202-UCT208 Pillow Block Bearing for Wind Turbine [WARN] draft identifier mismatch

Cross-Reference Triad Alignment — Every X&S UCT202 UCT203 UCT204 UCT205 UCT206 UCT207 UCT208 pillow block bearing we supply is verified against your OEM specifications for clearance, cage material, and precision, eliminating the field failures caused by base-number-only substitutions.

Technical Specifications

Note: The UCT prefix denotes a take-up unit housing configuration; specific internal design suffixes require manufacturer catalog confirmation for exact application matching.

Application Suitability

Why Wind Turbine Take-Ups Fail Before the Steel Yields

Seal degradation and cross-reference oversights destroy bearing life long before dynamic load limits are reached.

In the珠三角 region, I once inspected a wind turbine yaw drive that suffered a catastrophic seizure. The maintenance team had replaced the original take-up unit with a visually identical alternative, but the supplier only matched the base bore and outer dimensions. The replacement lacked the specific sealing geometry required to block fine abrasive dust from the nacelle environment. Within months, the contaminated grease turned into a grinding paste, locking the tensioning carriage entirely [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. When sourcing a X&S UCT202 UCT203 UCT204 UCT205 UCT206 UCT207 UCT208 pillow block bearing, matching the basic designation is merely the starting point; ignoring the internal clearance and seal variants guarantees premature downtime in harsh environments.

Matching the Take-Up Unit to Nacelle Tensioning Loads

Take-up units in wind power and heavy conveyor systems must absorb significant shock loads while maintaining precise belt or chain tension. The X&S UCT202 UCT203 UCT204 UCT205 UCT206 UCT207 UCT208 pillow block bearing series provides the necessary curved raceway geometry to handle these combined radial and axial forces. Our technical review process ensures that the housing material and internal bearing geometry are correctly aligned with the specific vibration profiles of your equipment, preventing the micro-movements that lead to fretting corrosion.

Navigating Thermal Expansion and Contamination Challenges

Wind turbine nacelles and outdoor material handling systems experience extreme temperature fluctuations. These thermal cycles dictate the required internal clearance; a standard CN clearance will cause thermal binding when the shaft expands under operational heat, whereas a C3 or C4 clearance accommodates this growth. Furthermore, the sealing interface is critical. Contact seals provide superior protection against agricultural dust and conveyor particulate matter but generate friction heat, while non-contact shields are better suited for high-speed, cleaner environments [NEED_CITE: seal friction and contamination ingress trade-offs in ISO 281]. Selecting the correct seal type prevents the exact dust-ingress seizures I have witnessed in the field.

Decoding the Internal Engineering and Precision Tiers

The internal components of these take-up units dictate their operational lifespan. Precision grades range from standard P0 for general conveyor idlers up to P2 for highly sensitive pitch control mechanisms where rotational accuracy is paramount. The cage material also plays a vital role: pressed steel cages are ideal for standard speeds and loads, while machined brass or polyamide cages are specified for high-vibration or high-speed applications to prevent cage fracture. Understanding these internal variants ensures the unit survives the specific operational stresses of your machinery.

The Hidden Financial Impact of Incorrect Suffix Selection

Purchasing a take-up unit based solely on the base number often results in severe financial consequences. If a high-temperature application receives a standard grease and seal package, the lubricant will carbonize, leading to catastrophic damage to the raceway and subsequent belt snapping. According to ISO 15243 frameworks, lubrication failure and contamination account for a significant share of premature failures [NEED_CITE: ISO 15243 failure classification]. These errors result in unplanned downtime, voided equipment warranties, and expensive emergency logistics, far exceeding the initial cost difference of a correctly specified unit.

Why Procurement Engineers Trust Our Technical Verification

We eliminate the guesswork in multi-brand sourcing. First, our cross-reference triad alignment checks clearance, cage, and precision, ensuring the UCT205 you receive matches the OEM intent, not just the bore size. Second, we provide authorized coverage across all major brands, allowing you to consolidate mixed-brand MRO orders into a single shipment. Third, every unit includes batch traceability to the manufacturer. Finally, our application-based selection review catches dangerous mismatches—like specifying a standard seal for a high-dust agricultural environment—before the order is placed.

Documentation & Authenticity

• Certificate of Conformity validating the specific P-grade tolerance of your take-up units.
• Original manufacturer batch and lot traceability documents for every X&S shipment.
• Official brand app QR verification to instantly rule out cloned codes and soft inner rings.
• Material test reports confirming the metallurgical integrity of the bearing steel.
• Dimensional and running accuracy inspection reports verifying P4 or P2 precision before dispatch.
• Country-of-origin documentation to satisfy strict customs and project compliance audits.

Storage, Handling & Mounting

• Store the units in original packaging to protect the curved raceway from ambient humidity and corrosion.
• Keep the take-up bearings away from direct UV exposure to prevent degradation of polyamide cage materials.
• Use clean gloves during handling to avoid transferring corrosive salts to the precision P2 grade surfaces.
• Apply induction heating for inner ring mounting to preserve the factory-set clearance and avoid seal damage.
• Never wash sealed variants; the factory-filled grease is optimized for the specific operating temperature range.
• Ensure the sliding surfaces of the take-up housing are clean and lubricated to prevent carriage binding.

Preparing Your Inquiry for Technical Review

To ensure accurate selection and L10 life calculation, please provide the specific radial and axial loads, operating speeds, and ambient temperature ranges of your tensioning application. If you are replacing existing equipment, share the exact OEM part numbers so we can perform a comprehensive cross-reference verification. Detailing the environmental exposure, such as heavy dust or moisture, allows our engineering team to recommend the optimal seal and clearance configuration.

Frequently Asked Questions

Q: Why must clearance and cage material be verified during cross-referencing?
A: Matching only the base bore and outer dimensions ignores critical internal designs. A standard clearance will cause thermal binding in hot environments, while an incorrect cage material may fracture under high vibration. Verifying these three parameters ensures the replacement unit survives the exact operational stresses of your machinery without premature failure.

Q: How do ISO precision grades affect take-up unit performance?
A: Higher precision grades like P4 or P2 minimize rotational runout and vibration, which is essential for sensitive wind turbine pitch mechanisms. Standard P0 grades are perfectly adequate for general material handling conveyors. Selecting the correct grade prevents unnecessary costs while ensuring the required operational stability for your specific application.

Q: What is the best way to verify the authenticity of the received bearings?
A: Counterfeiters often use cloned QR codes that redirect to fake websites. We supply original manufacturer batch traceability documents and encourage buyers to scan the housing QR codes using the official brand applications. This direct verification confirms the metallurgical origin and rules out dangerous soft inner rings.

Q: How should sealed take-up units be maintained in dusty environments?
A: Sealed units are pre-lubricated and designed to exclude contaminants without maintenance. Attempting to re-grease them or washing them with solvents will destroy the internal seal lips, allowing abrasive dust to enter the curved raceway. In extremely harsh environments, upgrading to a heavier contact seal variant during the initial selection is the correct approach.
