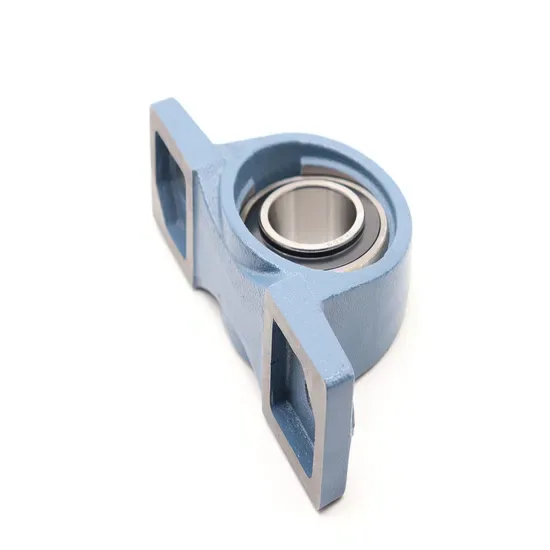

X&S UCP208 UCP202 UCP201 UCP206 UCP205 Pillow Block Bearing [WARN] draft identifier mismatch

Cross-reference alignment verified — Every X&S UCP208 UCP202 UCP201 UCP206 UCP205 pillow block bearing order is cross-checked against OEM clearance, housing dimensions, and locking mechanisms before dispatch.

Technical Specifications

Application Suitability

Why Base Number Matching Fails in the Field

A matching base number does not guarantee a successful installation.

I have watched maintenance crews force a replacement unit onto a conveyor shaft in the sweltering heat of a Pearl River Delta summer, only to see the inner ring seize within hours. The base dimension matched perfectly, but the internal clearance was wrong for the thermal expansion of the application. When sourcing a genuine X&S UCP208 UCP202 UCP201 UCP206 UCP205 pillow block bearing, relying solely on the basic designation while ignoring the required clearance class and seal friction is a primary driver of premature thermal binding [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Procurement teams often overlook these critical suffixes, leading to catastrophic cage failures when the equipment reaches operating temperature.

Matching Housing and Insert to the Operating Environment

Selecting the correct X&S UCP208 UCP202 UCP201 UCP206 UCP205 pillow block bearing requires looking beyond the catalog number to the actual operating environment. Our technical review process ensures that the housing material, insert bearing internal geometry, and locking mechanism align with your specific load profile. We do not just ship the requested part number; we verify that the selected unit can handle the specific radial loads and misalignment angles present in your machinery.

Navigating Thermal and Contamination Challenges

Agricultural and material handling environments introduce severe contamination and temperature fluctuations that challenge standard bearing seals. In dusty conditions, contact seals provide essential protection but generate friction heat, which can degrade the grease if the shaft speed is too high. Conversely, non-contact shields reduce friction but allow fine particulate ingress. Furthermore, high ambient temperatures combined with shaft heat generation demand a wider internal clearance to prevent the rolling elements from preloading and seizing inside the raceway [NEED_CITE: thermal expansion effects on bearing internal clearance].

Decoding the UCP Series Suffixes and Dimensions

The "UCP" prefix designates a standard pillow block housing paired with an insert bearing featuring a set screw locking mechanism, ideal for shafts where threading is impractical. The numerical suffixes—201, 202, 205, 206, and 208—indicate the dimension series and specific bore sizes, spanning from light-duty fractional bores to medium-duty larger shafts. Selecting the correct precision class, ranging from standard P0 up to P2, is critical; while P0 suffices for slow-moving conveyor pulleys, high-speed textile rollers demand tighter P5 or P4 tolerances to minimize vibration and noise.

The Hidden Costs of Incorrect Clearance Selection

Installing a standard clearance unit in an application that requires C3 clearance inevitably leads to unplanned downtime and severe equipment d*ternal clearance vanishes, causing the rolling elements to skid rather than roll. This rapid degradation not only destroys the bearing but can also score the shaft and damage the housing, resulting in warranty voidance and extensive secondary repair costs [NEED_CITE: ISO 281 bearing life calculation and failure factors].

Why Technical Verification Matters for Your Order

Sourcing these units through our authorized channel ensures you receive genuine components with verified metallurgical properties, avoiding the soft inner rings common in counterfeit market parts. We perform strict cross-reference checks that align not just the base number, but the exact clearance, cage material, and precision grade required by your OEM specifications. Every shipment includes full batch traceability, allowing your maintenance team to verify the origin and authenticity of the exact units installed on your factory floor.

Documentation & Authenticity

• Certificate of Conformity confirming the specific X&S production batch for full traceability.
• Official app QR verification enabling instant authenticity checks on the factory floor.
• Material test report validating the bearing steel composition and heat treatment hardness.
• Dimensional and running accuracy inspection report verifying P-class tolerances before dispatch.
• Country-of-origin documentation ensuring compliance with international import regulations.

Storage, Handling & Mounting

• Store the UCP units in original packaging to protect the housing paint and prevent corrosion on the insert outer ring.
• Verify the set screw locking mechanism thread integrity before mounting to ensure secure shaft clamping.
• Avoid hammering directly on the housing or inner ring during installation to prevent brinelling on the bearing steel raceways.
• Maintain the factory-applied grease fill unless the application requires a specific high-temperature or food-grade alternative.
• Align the housing base carefully to prevent binding the insert bearing outer ring in the spherical seat.

Preparing Your Technical Inquiry

To ensure the selected units perfectly match your machinery, please provide the exact radial and axial loads, operating speeds, and ambient temperature ranges for our engineering team to conduct an L10 life calculation. If you are replacing existing units, sharing the OEM equipment number or the exact dimensions of the shaft and housing mounting centers allows us to perform a precise cross-reference review. Detailing the environmental exposure, such as heavy dust or moisture, helps us confirm the optimal seal variant for your application.

Frequently Asked Questions

Q: How do I verify the authorized distribution status of the supplier for these pillow block units?
A: You can verify our authorization by requesting our official distribution certificates and cross-checking them with the manufacturer. Furthermore, every genuine X&S UCP208 UCP202 UCP201 UCP206 UCP205 pillow block bearing we supply features a unique batch code that can be scanned and validated directly through the brand’s official mobile application, ensuring complete supply chain transparency.

Q: Why must I check the clearance and seal type when cross-referencing UCP models from other brands?
A: A base number match only confirms the physical dimensions, not the internal engineering. Different manufacturers use varying suffix conventions for internal clearance and seal friction. Installing a standard clearance unit in a high-temperature motor application will cause thermal binding. We review the exact operating conditions to ensure the cross-referenced unit matches the necessary thermal expansion allowances and contamination protection.

Q: What precision grades are typically required for agricultural versus textile applications?
A: Agricultural machinery, such as harvesters and augers, generally operates at lower speeds with higher shock loads, making standard P0 or P6 precision sufficient. In contrast, textile machines and high-speed material handling conveyors require smoother operation and tighter vibration control, often necessitating P5 or P4 precision grades to maintain yarn tension and prevent premature structural fatigue.

Q: How should the set screw locking mechanism be tightened during installation?
A: The set screws must be tightened evenly and to the manufacturer’s recommended torque specifications using the correct hex key size to avoid stripping the threads. Over-tightening can distort the inner ring and restrict the rolling elements, while under-tightening allows the bearing to creep on the shaft. It is crucial to tighten the screws before the bearing is subjected to operational loads to ensure a secure, slip-free connection.
