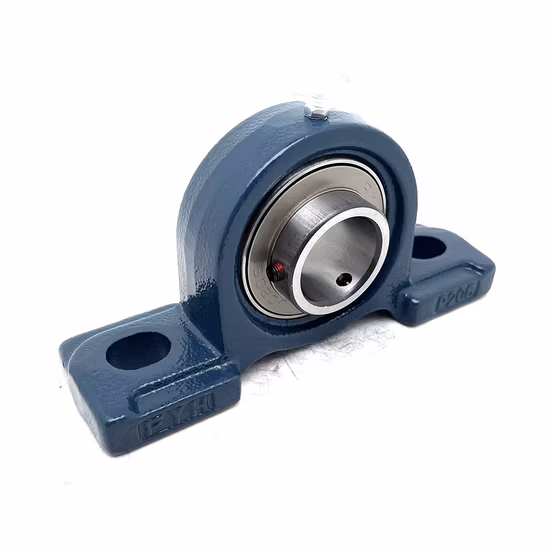

X&S UCP207 UCP208 UCP209 UCP210 UCP211 UCP212 Pillow Block Bearing for Waterproof Machine

Verified via official app — Every X&S pillow block unit ships with scannable QR codes linked directly to the manufacturer’s authentication database.

Technical Specifications

Note: Specific suffix availability for individual models within this series should be verified against the current manufacturer catalog.

Application Suitability

Why Soft Inner Rings Destroy Waterproof Machinery

Counterfeit insert bearings fail catastrophically when exposed to high-pressure washdowns.

In my years inspecting processing plants across Southeast Asia, I have seen countless waterproof machines brought down by compromised bearing internals. When maintenance teams source cheap replacements, they often receive units with soft inner rings that deform under set screw tightening. Once the inner ring loses its cylindrical integrity, the shaft frets, the seals fail, and water infiltrates the deep groove raceway. This exact failure mode accounts for a massive share of unplanned downtime in wet environments [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Sourcing a genuine X&S UC213 UC214 UC215 UC216 UC217 UC218 UCP218 UCP217 insert bearing pillow block unit ensures the metallurgical hardness required to maintain shaft concentricity.

Matching the Bearing to Wet and Dusty Environments

Selecting the correct sealing arrangement is the most critical decision when specifying a pillow block bearing for harsh environments. An RS contact seal provides superior exclusion of moisture and fine particulates, making it ideal for washdown areas, though it generates slightly more friction. Conversely, a ZZ shielded variant or an open bearing paired with external housing seals suits high-speed conveyor applications where thermal buildup must be minimized. Our technical team reviews your specific exposure risks to align the seal type with the operational demands of the machinery.

Operational Demands on Agitator and Conveyor Shafts

Agitator shafts in waterproof machinery subject bearings to constant radial loads combined with moderate axial thrust and severe moisture exposure. If the internal clearance is not properly matched to the operating temperature and shaft interference fit, the bearing will thermally bind and seize. Furthermore, agricultural and textile environments introduce abrasive dust that rapidly degrades standard lubricants. Proper grease selection and replenishment intervals are vital to flush out contaminants and protect the deep groove raceway from premature spalling [NEED_CITE: lubrication degradation in contaminated environments per ISO 281].

Decoding Precision and Vibration Tolerances

The specified precision class directly dictates the running accuracy and operational noise of the equipment. While P0 is sufficient for general conveyor idlers, precision textile rollers often require P5 or P4 tolerances to prevent fabric snagging and vibration-induced defects. Similarly, the vibration grade—from Z1V1 up to Z4V4—defines the acceptable limits for dynamic imbalance and surface waviness. Selecting a higher vibration grade ensures smoother rotation, which is particularly crucial for high-speed drive shafts where harmonic resonance could damage adjacent machine components.

The Hidden Costs of Dimensional Inaccuracy

Purchasing unverified units often results in housing bores that are slightly oversized or out-of-round. When an insert bearing is pressed into a deformed housing, the outer ring distorts, immediately reducing the internal radial clearance and creating localized stress points on the rolling elements. This geometric distortion leads to rapid fatigue, catastrophic cage failure, and extensive damage to the shaft journal. The resulting emergency repairs and production halts always eclipse the initial savings from buying non-genuine parts [NEED_CITE: housing distortion effects on bearing life per ISO 281].

Securing Traceability in Your MRO Supply Chain

Mixed-brand procurement often leads to cross-reference errors where the base designation matches, but the internal clearance or seal type is entirely wrong for the application. We prevent this by verifying every X&S UC213 UC214 UC215 UC216 UC217 UC218 UCP218 UCP217 insert bearing pillow block unit against the exact OEM requirements, checking suffixes rather than just the core number. Our inventory provides full batch traceability, ensuring that the metallurgical certificates match the physical units delivered to your dock. This rigorous alignment eliminates the thermal binding and premature seal failures caused by mismatched internal geometries.

Documentation & Authenticity

• Certificate of Conformity verifying the specific P0 to P2 precision class of the shipped batch.
• Manufacturer batch and lot traceability linking the housing and insert to the original forging heat.
• Official app QR verification for immediate on-site authentication of the X&S pillow block unit.
• Material test report confirming the bearing steel composition and hardenability for heavy-load shafts.
• Dimensional and running accuracy inspection report validating the deep groove raceway tolerances.

Storage, Handling & Mounting

• Store the ZZ and RS sealed variants in original packaging to prevent moisture ingress before installation.
• Use induction heating for solid shaft mounting to avoid damaging the deep groove raceway during press-fits.
• Apply anti-corrosion coating to exposed outer rings if storing open variants in high-humidity MRO cribs.
• Align the housing base carefully to prevent binding the UC series inner ring on the shaft journal.
• Verify set screw torque specifications to prevent crushing soft counterfeit inner rings during securing.

Pre-Order Technical Verification

To ensure the selected unit withstands your specific operational stresses, please provide the radial and axial load profiles, operating speeds, and ambient temperature ranges. Sharing the exact OEM equipment designation allows our engineering team to perform a comprehensive cross-reference check, verifying that the internal clearance and seal configuration perfectly match the original design intent. This technical review guarantees the replacement unit integrates flawlessly into your existing machinery footprint.

Frequently Asked Questions

Q: How do I verify the authenticity of the pillow block units using the QR app?
A: Scan the QR code located on the product packaging or housing label using the manufacturer’s official mobile application. The app instantly cross-references the unique batch identifier with the central production database, confirming the origin, manufacturing date, and specific material lot. This digital verification eliminates the risk of installing cloned units with soft inner rings that bypass casual visual inspections.

Q: What cross-reference checks are needed beyond the base UCP or UC designation?
A: Matching the base number is insufficient; you must verify the internal clearance class, seal type, and precision suffix. Installing a standard CN clearance unit in an application requiring C3 for thermal expansion will cause the bearing to bind and seize as the shaft heats up. Our technical team reviews these exact suffix parameters to ensure the replacement matches the OEM equipment’s thermal and load requirements.

Q: How do I choose between ZZ, RS, and Open seal types for wet environments?
A: RS contact seals provide the highest level of protection against water ingress and fine dust, making them ideal for washdown areas despite slightly higher friction. ZZ shields offer non-contact protection suitable for high-speed applications where heat generation must be minimized. Open bearings are selected when the machinery features external, heavy-duty housing seals or requires frequent external relubrication to flush out severe contamination.

Q: What is the practical difference between P0, P6, and P5 precision classes in these inserts?
A: P0 is the standard commercial grade suitable for general conveyors and agricultural drives where minor vibration is acceptable. P6 and P5 offer progressively tighter dimensional and running accuracy tolerances, which are critical for textile machinery and high-speed rollers. Upgrading to a higher precision class reduces operational noise, minimizes harmonic vibration, and extends the fatigue life of the deep groove raceway under continuous rotation.
