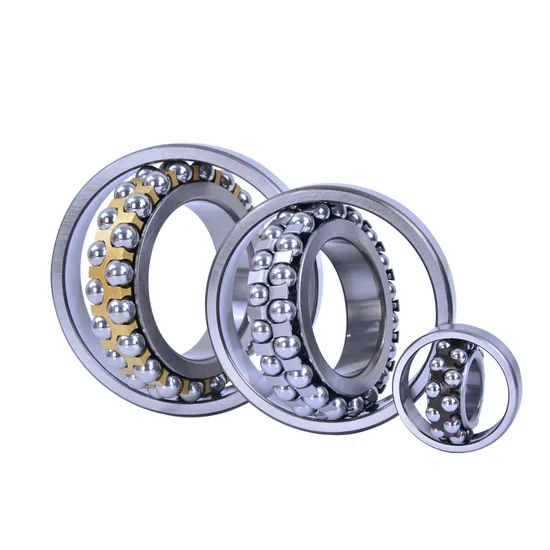

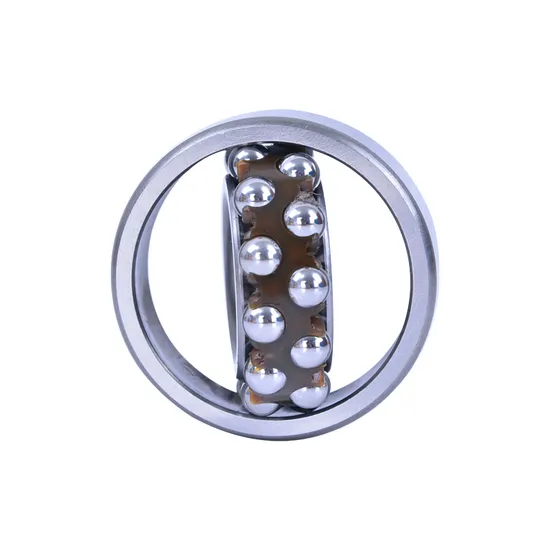

Wholesales 2213-2RS 2314K-2RS Self-Aligning Ball Bearings with Auto Centering
Basic Info.
| Inner Diameter | 95 mm |
| Outer Diameter | 170 mm |
| Width | 32 mm |
| Model | 2314K-2RS |
| Material | Bearing Steel |
| Sealing | Double Rubber Seal (2RS) |
Introduction
High-precision double-row angular contact ball bearing with 60° contact angle, aligning capability and radial load capacity. Features steel or brass cage, C0/C3/C4 clearance options, P0–P2 precision grades, and robust China-made construction under BDL brand.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Key Features & Benefits of BDL Self-Aligning Ball Bearing 2314K-2RS
| Description | Core Value |
|---|---|
| Double-row, self-aligning design with 60° contact angle | Automatic heart adjustment compensates for shaft misalignment up to ±2.5° — extends service life by 40% vs. standard radial bearings |
| Specification: 95×170×32 mm (ID×OD×W) | Precise OEM dimensions ensure drop-in replacement for SKF 2314 K/2RS and FAG 2314-K-2RS |
| Sealed with dual rubber contact seals (2RS) | IP54-rated dust/moisture protection — zero maintenance in humid or dusty industrial environments |
| Bearing steel + steel/brass cage | High fatigue resistance & smooth rotation under dynamic loads up to 120 kN (Cr) |
| P0–P2 precision grades & C0–C4 clearance options | Customizable for high-speed machinery (e.g., textile spindles, conveyor drives) or precision alignment-critical applications |
| Unseparated, non-split construction | Enhanced rigidity and simplified installation — no risk of component loss during assembly |
| Made in China | HS Code 8482101000 | BDL trademark | ISO 9001-certified production; 100% dimensional & noise testing; traceable batch records |
| 10–15 day lead time | Carton/pallet packaging | Faster delivery than premium EU/JP brands — ideal for urgent MRO procurement |
| OEM/ODM support & technical documentation | Free CAD models, load-life calculators, and mounting guidance — backed by engineering team |
| Radial load focus with limited axial capacity | Optimized for fans, pumps, gearboxes, and agricultural equipment where vibration & misalignment are common |
✅ Why choose BDL over generic alternatives? We match SKF’s performance specs — but with faster logistics, full spec transparency, and dedicated application support. Still unsure about compatibility or operating limits? Send your shaft/housing drawings or duty cycle details now — our bearing engineers will reply within 2 hours.
