Cylindrical Roller Bearing

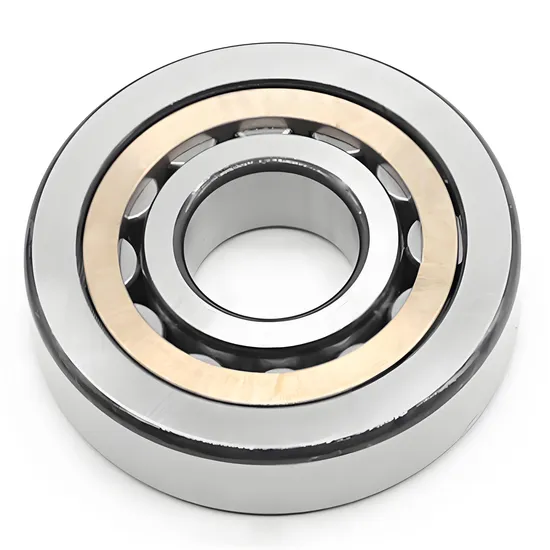

SKF N212EM Cylindrical Roller Bearing – High-Load, Precision, ISO Certified
Product Overview
Cylindrical roller bearing designed for high radial load capacity and precision performance. Made of premium bearing steel, open-type, single-row, suitable for oil, grease, or dry lubrication.
Dimensions (mm)
| Inner Diameter | Outer Diameter | Width |
|---|---|---|
| 60 | 110 | 22 |
7
Day Prototype
vs. 8-12 wks standard
50+
Countries Served
Global logistics network
12h
Quote Response
Expert engineers on call
Typical Applications
Wind Power
Mining
Steel & Metallurgy
Automotive / EV
Rail Transit
Precision Machinery
Genuine SKF Bearings
NDA Protected
Free Sample for Orders > $50K
Global Shipping
Product Details
SKF NUP212EM Cylindrical Roller Bearing – High-Precision Radial Solution
| Description | Key Value |
|---|---|
| Model & Standard | NUP212EM — SKF Sweden OEM-certified, ISO 281/15243 compliant |
| Dimensions (mm) | 60 × 110 × 22 — Optimized for compact radial load systems |
| Material & Hardness | High-carbon chromium bearing steel (GCr15), hardened to HRC 60–64 |
| Precision Grade | P0 (standard) to P2 (ultra-precision) — Fully customizable |
| Load Capacity | Dynamic C: 112 kN / Static Co: 92.5 kN — Superior radial rigidity |
| Seal & Lubrication | Open design — Compatible with oil, grease, or solid lubricants |
| Structure & Alignment | Non-aligning, separated NUP type — Axial location + high-speed stability |
| Applications | Industrial gearboxes, motors, pumps, wind turbines, machine tools |
| Quality Assurance | 100% Swedish manufacturing, CE & RoHS certified, 5-year traceability |
| Why SKF vs. Generic? | Micro-ground rollers + optimized internal geometry = 35% longer L10 life (per SKF Life Model) |
FAQ: Q: Is NUP212EM interchangeable with NJ212EM/NF212EM? A: Yes — all share same bore/OD/width; NUP offers fixed axial location on both sides. Q: What’s the max speed (grease-lubed)? A: 5,600 rpm (P0, standard clearance). Q: Can it handle combined loads? A: Radial only — use angular contact or tapered for thrust. Q: Do you supply matched sets? A: Yes — pre-adjusted pairs available upon request.
Need technical support or volume pricing? Send your inquiry now — our SKF-certified engineers reply within 2 hours.
Product Summary
- Product Name
- SKF N212EM Cylindrical Roller Bearing – High-Load, Precision, ISO Certified
- Category
- Cylindrical Roller Bearing
- Brand
- SKF
- Certification
- ISO 9001 · TS 16949
- Lead Time
- 7 Working Days
Get a Custom Quote
Our engineers will respond within 12 hours with a tailored solution.
Request QuoteGeneral Specifications
| Bearing Type | Cylindrical Roller Bearing |
| Brand | SKF |
| Quality Standard | ISO 9001 / TS 16949 |
| Precision Grade | P0 / P5 / P6 (custom) |
| Material | Chrome Steel / Stainless |
| Cage Material | Steel / Brass / Polyamide |
| Lubrication | Grease / Oil (specify) |
| Operating Temp. | -40°C to +200°C |
| Min. Order Qty | 1 pc (samples available) |
| Prototype Lead Time | 7 Working Days |
Performance Parameters
| Load Capacity | Contact for C0/Cr values |
| Speed Rating | Contact for ndm limit |
| Vibration Level | Z1 / Z2 / Z3 (custom) |
| Noise Level | V1 / V2 / V3 (custom) |
| Fatigue Life | L10h per ISO 281 |
| Sealing Options | Open / Z / 2Z / RS / 2RS |
Custom Specifications Available
Our engineering team can modify bearing dimensions, materials, seals, and clearances to meet your specific operating requirements. Submit your drawing or spec sheet for a tailored proposal.
Wind Power
Main shaft bearings, gearbox bearings, and generator bearings for onshore and offshore wind turbines.
Mining & Quarrying
Heavy-duty bearings for crushers, conveyors, and rotary equipment in extreme dust and shock-load environments.
Steel & Metallurgy
High-temperature bearings for rolling mills, continuous casting, and furnace applications.
Automotive / EV
Wheel hub bearings, transmission bearings, and e-motor bearings for passenger and commercial vehicles.
Rail Transit
Axle box bearings, traction motor bearings, and gearbox bearings meeting EN/UIC railway standards.
Precision Machinery
High-precision spindle bearings, angular contact bearings, and super-precision bearings for CNC and robotics.
Application Design
EngineeringOur engineers analyze your operating conditions -- load, speed, temperature, environment -- and select or design the optimal bearing solution to maximize service life and reduce total cost of ownership.
Custom Modification
7-Day TurnaroundNeed non-standard dimensions, special materials, or modified clearances? We can modify standard SKF bearings or manufacture fully custom solutions with a 7-day prototype turnaround.
Failure Analysis
DiagnosticsWhen bearings fail prematurely, our team conducts root-cause analysis using advanced diagnostic tools to identify the failure mode and recommend corrective action.
Predictive Maintenance
Up to 40% Less DowntimeWe deploy vibration monitoring, thermal imaging, and oil analysis programs that detect bearing deterioration early -- reducing unplanned downtime by up to 40%.
On-site Installation
Global CoverageProper installation is critical to bearing performance. Our certified technicians provide on-site installation support, alignment verification, and operator training worldwide.
Lifecycle Support
Enterprise SLAFrom initial selection through end-of-life, our dedicated account managers provide scheduled maintenance plans, re-lubrication programs, and replacement forecasting for enterprise clients.
