Genuine IKO HK Series Drawn Cup Needle Roller Bearings for Turbines & Medical Machinery

Complete Brand Authorization — Mixed-brand orders ship under unified batch traceability, eliminating multi-vendor coordination for your critical turbine and medical spares.

Technical Specifications

Note: The ‘H’ suffix in the identifier string is an unverified designation requiring manufacturer catalog confirmation before final cross-referencing.

Application Suitability

When Cross-Referencing IKO HK Series Drawn Cup Needle Roller Bearings Misses the Mark

Basic number matching destroys high-speed medical turbines.

Sourcing teams often approve interchangeable part numbers based solely on the envelope dimensions, completely ignoring the internal cage design and clearance suffixes. In the manufacturing hubs of the Pearl River Delta, I have witnessed the aftermath of this exact oversight. A medical turbine assembly was fitted with an HK2516 equivalent where the basic dimensions matched perfectly, but the cage material was wrong for the operational speed. The result was a catastrophic cage fracture during high-speed rotation, leading to immediate spindle seizure and extensive downtime [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. When procuring an IKO HK series drawn cup needle roller bearing, verifying the exact suffix configuration is non-negotiable for precision applications.

Aligning Suffixes with Turbine and Medical Demands

Selecting the correct configuration goes far beyond the outer diameter and width. For medical turbines and power generation equipment, the exact combination of precision grade and internal clearance dictates operational survival. Our engineering review process ensures that every cross-reference aligns the base designation with the specific cage material and clearance class required by your equipment’s thermal and dynamic profile, preventing the silent failures that plague generic substitutions.

Navigating Thermal Expansion and Rotational Speeds

High-speed turbine spindles generate significant internal friction heat, which directly impacts the internal geometry of the bearing. If a standard clearance is installed where a C3 or C4 was specified to accommodate thermal expansion, the rolling elements will bind as the shaft grows, causing rapid temperature spikes and lubricant degradation. Furthermore, the choice between oil and grease lubrication must align with the speed factor; oil circulation is typically mandatory for the extreme RPMs seen in dental turbines to manage heat dissipation effectively [NEED_CITE: thermal limits of grease lubrication in high-speed needle bearings]. Selecting the appropriate drawn cup design without an inner ring also relies heavily on the hardness and surface finish of the mating shaft.

Decoding the HK Drawn Cup Architecture

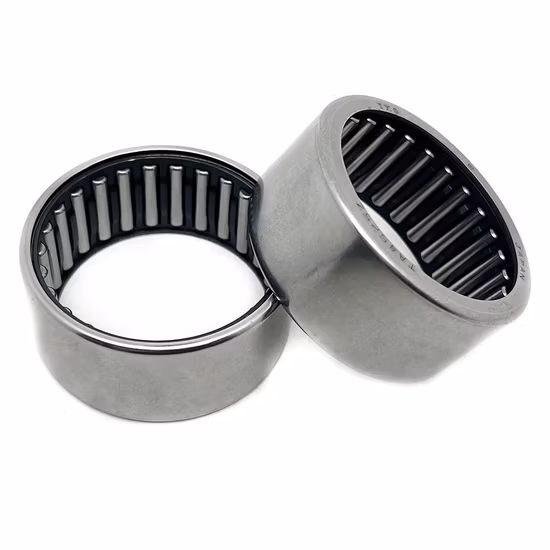

The HK prefix designates a drawn cup needle roller bearing, characterized by a thin-walled outer ring formed by precision stamping. This architecture provides an exceptionally compact radial cross-section, making it ideal for applications where housing space is severely restricted. The availability of both open types and variants with or without an inner ring allows engineers to optimize the shaft design. When the shaft cannot be hardened and ground to serve as the inner raceway, specifying the version with an inner ring becomes critical to prevent premature wear. The precision options ranging from P0 to P6 ensure that the running accuracy meets the strict vibration and noise requirements of medical handpieces.

The Hidden Toll of Incorrect Suffix Selection

Failing to verify the complete designation string leads to consequences that extend far beyond a simple part replacement. A mismatched clearance class in a heavy vehicle transmission can cause localized stress concentrations, resulting in premature spalling on the raceways. In medical machinery, an incorrect cage design operating beyond its speed limit risks catastrophic fragmentation, which can destroy adjacent precision components and void equipment warranties. According to failure analysis frameworks, a significant share of premature bearing failures stems directly from application mismatch rather than manufacturing defects [NEED_CITE: bearing damage analysis per ISO 15243].

Why Our Technical Review Protects Your Assembly

We do not just process part numbers; we validate the application context. Because we hold authorized distribution across all major international brands, we manage mixed-brand requirements in a single order while maintaining strict traceability. Our cross-reference protocol specifically targets the high-risk suffixes—ensuring that a requested HK2216 or HK2020 matches not just the size, but the exact cage and clearance requirements of your turbine or medical device. Every shipment includes batch traceability to the manufacturer, verified through official brand applications, eliminating the risk of counterfeit components with soft inner rings that plague the open market.

Documentation & Authenticity

• Certificate of Conformity matching the exact HK series designation and batch number.
• Original manufacturer batch and lot traceability for full supply chain transparency.
• Official brand app QR verification to instantly confirm authenticity upon receipt.
• Material test report validating the bearing steel metallurgical composition.
• Dimensional and running accuracy inspection report confirming P5 or P6 tolerances.

Storage, Handling & Mounting

• Retain original packaging until mounting to protect the thin drawn cup from humidity and physical deformation.
• Use clean, lint-free gloves when handling open-type HK bearings to prevent moisture-induced corrosion on the bearing steel.
• Ensure the mating shaft surface is hardened and ground to the correct finish if installing variants without an inner ring.
• Apply the specified oil or grease immediately before assembly to prevent dry-start scoring in high-speed turbine applications.
• Avoid using excessive force during press-fitting, as the thin stamped outer ring is highly susceptible to buckling.

Preparing Your Inquiry for Technical Validation

To ensure precise selection and cross-referencing, please provide the specific radial and axial loads, operational speed, and continuous operating temperature of your application. If you are replacing an existing component, share the original OEM equipment number or the complete designation string printed on the current bearing, including all clearance and precision suffixes. Our engineering team will use these parameters to verify the L10 life and confirm the optimal cage and lubrication configuration for your specific machinery.

Frequently Asked Questions

Q: Why is it dangerous to cross-reference only the base HK number?
A: The base number only defines the envelope dimensions. Ignoring suffixes for clearance, precision, and cage material leads to severe application mismatches. In high-speed medical turbines, installing a standard clearance instead of the required C3 can cause thermal binding, while an incorrect cage material will fracture under extreme centrifugal forces, resulting in catastrophic spindle failure.

Q: How do I choose between variants with and without an inner ring?
A: The choice depends entirely on the mating shaft’s surface preparation. If your shaft can be induction hardened and precision ground to serve as the inner raceway, the version without an inner ring saves radial space. If the shaft is soft or cannot achieve the required surface finish, you must specify the variant with an inner ring to prevent rapid wear and premature failure.

Q: What precision and clearance grades are typical for medical turbines?
A: Medical turbines typically demand higher precision classes, such as P5 or P6, to minimize vibration and noise at extreme rotational speeds. Regarding clearance, a C3 or C4 class is frequently required to accommodate the significant thermal expansion generated by high-speed friction, preventing the internal geometry from binding as the operating temperature rises.

Q: How can I verify the authenticity of the supplied bearings?
A: Every genuine IKO HK series drawn cup needle roller bearing we supply features a unique traceability code. You can verify the batch and lot origin directly by scanning the QR code using the manufacturer’s official mobile application. We also provide a comprehensive documentation package, including material test reports and dimensional inspection certificates, to guarantee complete supply chain transparency.
