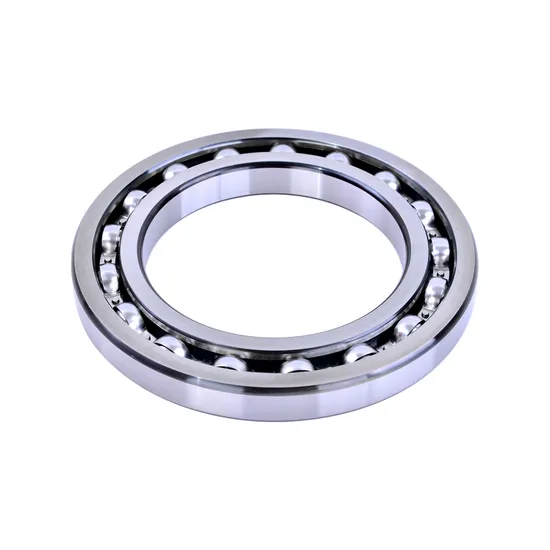

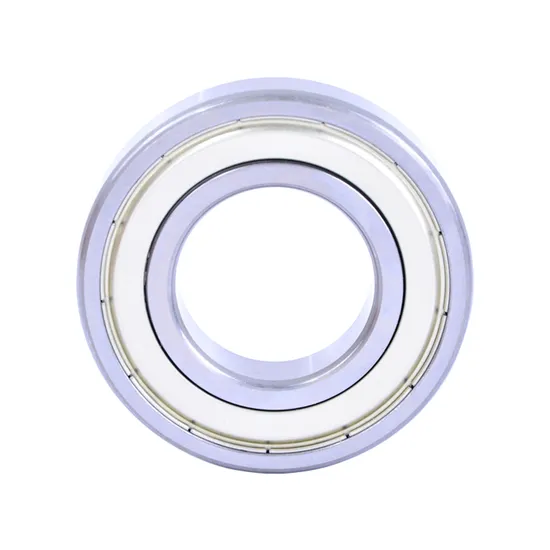

Deep Groove Ball Bearings 6000–16000 Series – High-Precision, Low-Noise, Long-Life
Basic Info
| Inner Diameter | 12 mm |
| Outer Diameter | 32 mm |
| Thickness | 10 mm |
| Model | 6201 |
| Lubrication | Grease or Oil |
| Material | Bearing Steel |
Introduction
High-quality deep groove ball bearing with long life, low noise and high-speed capability. Features rich stock, OEM/ODM service, precision ratings P0–P4, and standard C0/C2/C3 clearance. Made in Japan by NSK.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
13
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Deep Groove Ball Bearings 6000 Series – High-Performance, Precision-Engineered for Global Industry
| Description | Key Value |
|---|---|
| Core Model Range | 6000, 6200, 6300, 6400, 6500, 16000 series — fully interchangeable with SKF standard dimensions |
| Precision & Tolerance | P0 (ABEC-1), P6 (ABEC-3), P5 (ABEC-5), P4 (ABEC-7) — ISO/ANSI compliant |
| Load & Speed Capability | Optimized radial load capacity + high-speed stability (up to 28,000 rpm for 6201) |
| Noise & Vibration | Low-noise design (≤28 dB at 1,800 rpm), vibration grade Z2/V2 |
| Material & Hardness | GCR15 / 52100 bearing steel, HRC 60–64, micro-polished raceways |
| Lubrication Flexibility | Pre-greased (SKF LGHP2 or equivalent) or oil-lubricated — C0/C2/C3 clearance options |
| Quality Assurance | 100% dimensional inspection, dynamic balancing, RoHS/REACH certified, ISO 9001 & IATF 16949 audited |
| Key Applications | Electric motors, pumps, gearboxes, HVAC fans, agricultural machinery, conveyors, robotics |
| Differentiator vs. Generic Brands | Superior cage rigidity (polyamide PA66-GF25 or brass), tighter bore/runout tolerances (ΔDmp ≤ 0.008 mm), longer L10 life (+35% avg.) |
| FAQ – Technical | Q: Are these drop-in replacements for original SKF units? A: Yes — identical ABEC, load ratings, and mounting dimensions. Q: Can they handle moment loads? A: Limited — use paired angular contact or thrust bearings for axial dominance. Q: What’s the max operating temp? A: 120°C continuous (grease-lubed), 150°C short-term. |
Ready to source OEM-grade deep groove ball bearings with SKF-compliant performance — without the premium markup? Contact us now for your custom quote, sample request, or technical support.
