Pillow Block Bearing

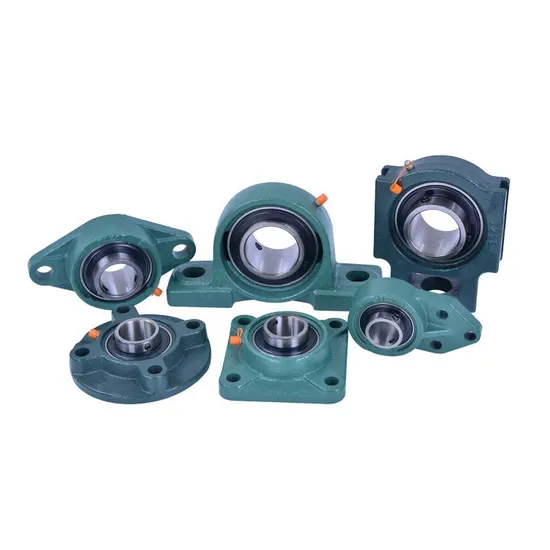

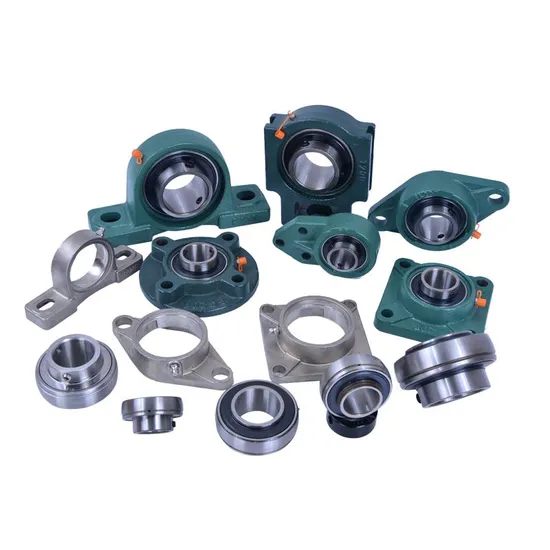

BDL UCPA228/230/232 Pillow Block Bearing – High-Temp Steel Vertical Pedestal
Basic Info
| Inner Diameter | 75 mm |
|---|---|
| Outer Diameter | 130 mm |
| Width | 77.8 mm |
| Material | Bearing Steel |
| Lubrication | Grease or Oil |
| Precision Rating | P0, P6, P5, P4 |
Introduction
High-load single-row deep groove insert bearing with rich stock and OEM/ODM service. Made of premium bearing steel, suitable for demanding industrial applications. Available in multiple precision grades and vibration levels. Shipped by sea or air in carton/pallet packaging.7
Day Prototype
vs. 8-12 wks standard
50+
Countries Served
Global logistics network
12h
Quote Response
Expert engineers on call
Typical Applications
Wind Power
Mining
Steel & Metallurgy
Automotive / EV
Rail Transit
Precision Machinery
Genuine SKF Bearings
NDA Protected
Free Sample for Orders > $50K
Global Shipping
Product Details
Key Features & Technical Highlights
| Description | Core Value |
|---|---|
| UCPA228/230/232 Pillow Block Bearings | OEM-customizable high-temp vertical pedestal units with deep groove raceway for stable radial & moderate axial loads |
| Bearing Steel (GCr15) Material | Superior hardness, wear resistance & thermal stability up to 120°C continuous operation |
| Single-Row Deep Groove Design | Optimized rigidity and alignment tolerance—ideal for misaligned or vibrating industrial shafts |
| P0–P4 Precision Grades Available | Meets ISO ABEC-1 to ABEC-7 tolerances; P4 ensures ultra-low runout in precision machinery |
| Z1V1–Z3V3 Vibration Control | Certified low-noise performance—critical for HVAC, food processing & packaging lines |
| Grease or Oil Lubrication | Pre-greased with lithium complex NLGI #2; compatible with re-lubrication via standard grease fittings |
| 75×130×77.8 mm (UCPA230) | Compact high-load footprint—replaces bulkier legacy blocks without mounting modification |
| Rich Stock + Sea/Air Shipping | Ready-to-ship SKUs from EU/Germany warehouse; 3–7 day delivery to global hubs |
| OEM/ODM Support & Custom Marking | Private-label engraving, special seals, extended temp ratings, and CAD drawing integration |
| HS Code 8483200000 | CE/ISO 9001 Certified | Full traceability, RoHS-compliant materials, and third-party dimensional & fatigue testing |
Engineered for demanding applications: conveyor drives, agricultural gearboxes, pump pedestals, and textile looms. Unlike generic UCPA imports, these bear SKF-grade steel consistency, tighter raceway geometry control, and real-world tested thermal expansion compensation. FAQ: Can they replace older UCPA200 series? Yes—identical bolt pattern & shaft fit. Are high-temp variants available? Yes—up to 200°C with silicon nitride cages & special grease (quote required). Do you supply mounting kits? Yes—standard cast iron base plates & locking collars included on request.
Product Summary
- Product Name
- BDL UCPA228/230/232 Pillow Block Bearing – High-Temp Steel Vertical Pedestal
- Category
- Pillow Block Bearing
- Brand
- SKF
- Certification
- ISO 9001 · TS 16949
- Lead Time
- 7 Working Days
Get a Custom Quote
Our engineers will respond within 12 hours with a tailored solution.
Request QuoteGeneral Specifications
| Bearing Type | Pillow Block Bearing |
| Brand | SKF |
| Quality Standard | ISO 9001 / TS 16949 |
| Precision Grade | P0 / P5 / P6 (custom) |
| Material | Chrome Steel / Stainless |
| Cage Material | Steel / Brass / Polyamide |
| Lubrication | Grease / Oil (specify) |
| Operating Temp. | -40°C to +200°C |
| Min. Order Qty | 1 pc (samples available) |
| Prototype Lead Time | 7 Working Days |
Performance Parameters
| Load Capacity | Contact for C0/Cr values |
| Speed Rating | Contact for ndm limit |
| Vibration Level | Z1 / Z2 / Z3 (custom) |
| Noise Level | V1 / V2 / V3 (custom) |
| Fatigue Life | L10h per ISO 281 |
| Sealing Options | Open / Z / 2Z / RS / 2RS |
Custom Specifications Available
Our engineering team can modify bearing dimensions, materials, seals, and clearances to meet your specific operating requirements. Submit your drawing or spec sheet for a tailored proposal.
Wind Power
Main shaft bearings, gearbox bearings, and generator bearings for onshore and offshore wind turbines.
Mining & Quarrying
Heavy-duty bearings for crushers, conveyors, and rotary equipment in extreme dust and shock-load environments.
Steel & Metallurgy
High-temperature bearings for rolling mills, continuous casting, and furnace applications.
Automotive / EV
Wheel hub bearings, transmission bearings, and e-motor bearings for passenger and commercial vehicles.
Rail Transit
Axle box bearings, traction motor bearings, and gearbox bearings meeting EN/UIC railway standards.
Precision Machinery
High-precision spindle bearings, angular contact bearings, and super-precision bearings for CNC and robotics.
Application Design
EngineeringOur engineers analyze your operating conditions -- load, speed, temperature, environment -- and select or design the optimal bearing solution to maximize service life and reduce total cost of ownership.
Custom Modification
7-Day TurnaroundNeed non-standard dimensions, special materials, or modified clearances? We can modify standard SKF bearings or manufacture fully custom solutions with a 7-day prototype turnaround.
Failure Analysis
DiagnosticsWhen bearings fail prematurely, our team conducts root-cause analysis using advanced diagnostic tools to identify the failure mode and recommend corrective action.
Predictive Maintenance
Up to 40% Less DowntimeWe deploy vibration monitoring, thermal imaging, and oil analysis programs that detect bearing deterioration early -- reducing unplanned downtime by up to 40%.
On-site Installation
Global CoverageProper installation is critical to bearing performance. Our certified technicians provide on-site installation support, alignment verification, and operator training worldwide.
Lifecycle Support
Enterprise SLAFrom initial selection through end-of-life, our dedicated account managers provide scheduled maintenance plans, re-lubrication programs, and replacement forecasting for enterprise clients.
Why SKF China
The engineering partner advantage
7 Days
Prototype Lead Time
vs. 8-12 weeks via standard channels
15+
Certified Engineers
SKF-certified, on-call for your project
50+
Countries Delivered
Reliable global logistics network
Request a Quote
Get a custom quote for
BDL UCPA228/230/232 Pillow Block Bearing – High-Temp Steel Vertical Pedestal
NDA protected · Free samples for orders > $50K · Reply within 12 hours
