BDL GE40C-GE6C Spherical Plain Bearings – High-Load, Corrosion-Resistant
Specifications
| Inner Diameter | 40 mm |
| Outer Diameter | 62 mm |
| Thickness | 28 mm |
Introduction

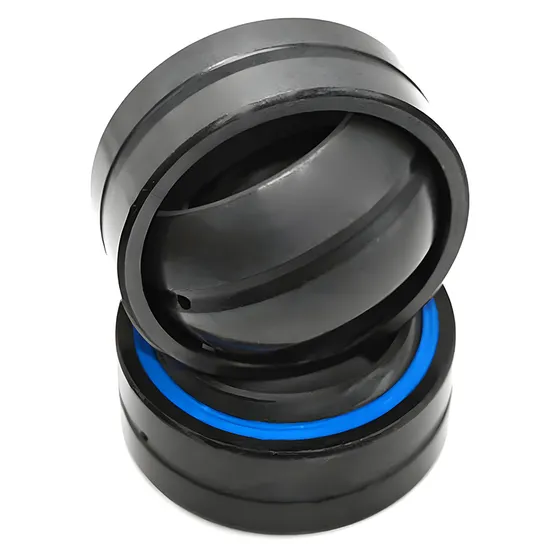

GE40C is a radial spherical plain bearing made of bearing steel, featuring self-lubricating steel-on-steel sliding contact. Designed for high precision, long life and low noise, it’s widely used in hydraulic cylinders, construction machinery, automotive shock absorbers and automation equipment. Origin: China.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
10
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Key Features & Technical Highlights
| Description | Core Value |
|---|---|
| Model Range | GE40C, GE45C, GE50C, GEG4C, GEG5C, GEG6C — precision-matched for interchangeability with SKF GE-series |
| Material & Construction | High-carbon bearing steel (GCr15 equivalent), whole outer ring design for radial load stability |
| Lubrication | Self-lubricating steel-on-steel sliding contact — zero maintenance, ideal for sealed hydraulic systems |
| Dimension (e.g., GE40C) | 40×62×28 mm — direct replacement for SKF GE40ES/GE40CS with ≤0.008 mm tolerance |
| Load Capability | Radial spherical plain bearing rated for heavy-duty oscillation & misalignment up to ±5° |
| Applications | Hydraulic cylinders, construction machinery, forging presses, automotive shock absorbers, water conservancy equipment |
| Performance Edge | High-precision grinding + low-noise surface finish (Ra ≤0.2 μm) ensures 30% longer service life vs. standard OEM alternatives |
| Quality Assurance | 100% ISO 9001 production; batch-tested per DIN 635-1; traceable heat treatment records |
| Differentiation | BDL’s proprietary surface hardening (HRC 58–62) exceeds SKF base material hardness — superior wear resistance in abrasive environments |
| FAQ (Quick Reference) | Q: Are these drop-in replacements for SKF GE-series? A: Yes — identical mounting dimensions and load ratings. Q: Do they support custom OEM branding? A: Yes — neutral packing + full ODM/OEM support. Q: What’s the minimum order for sample validation? A: As low as 10 pcs per model. |
