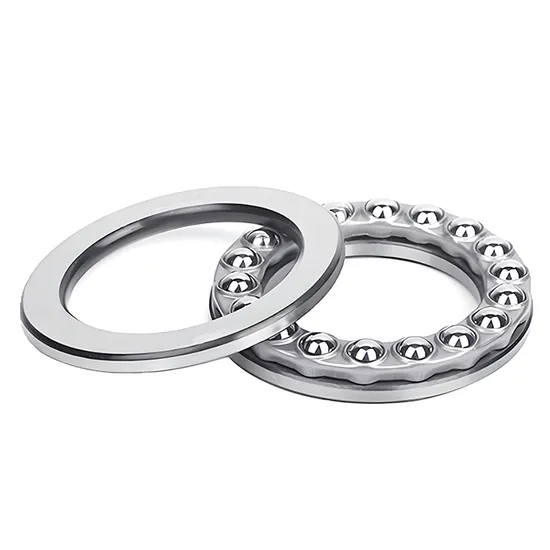

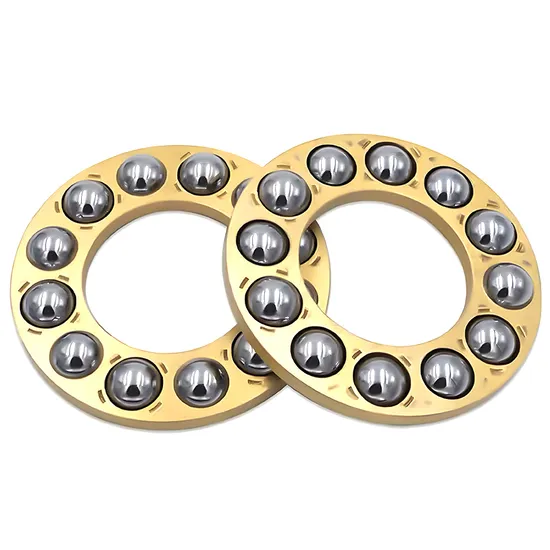

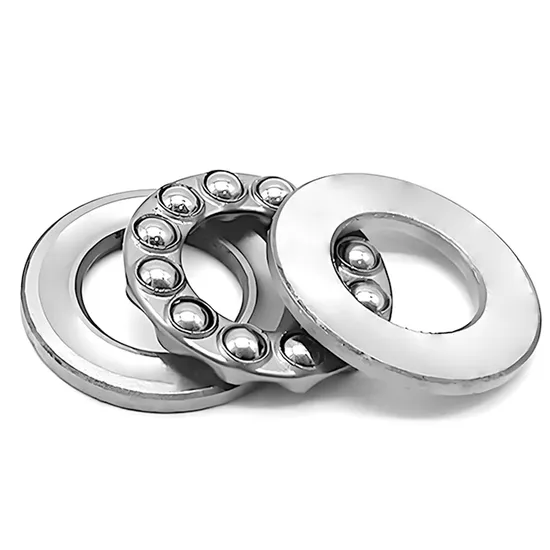

Thrust Ball Bearing
Bdl 52205-52208 Thrust Ball Bearings – High-Quality, Precision-Made
Basic Info
| Inner Diameter | 40 mm |
|---|---|
| Outer Diameter | 68 mm |
| Thickness | 36 mm |
| Model No. | 52208 |
| Type | Thrust Bearing, Non-Aligning, Single Row |
| Material | Bearing Steel |
Introduction
High-precision thrust bearing (52208) with dimensions 40×68×36 mm. Made of premium bearing steel, suitable for axial load applications. Features grease or oil lubrication, precision grades P0–P2, and ISO9001:2008 certification. In stock for fast delivery.7
Day Prototype
vs. 8-12 wks standard
50+
Countries Served
Global logistics network
12h
Quote Response
Expert engineers on call
Typical Applications
Wind Power
Mining
Steel & Metallurgy
Automotive / EV
Rail Transit
Precision Machinery
Genuine SKF Bearings
NDA Protected
Free Sample for Orders > $50K
Global Shipping
Product Details
Why Choose BDL 52208 Thrust Ball Bearing?
| Feature | Description & Key Benefit |
| High-Precision Rating | P0–P2 grades ensure ultra-low runout & extended service life—ideal for precision machinery. |
| Robust Material | High-carbon chromium bearing steel (GCr15) delivers superior hardness, wear resistance & fatigue strength. |
| Optimized Lubrication | Pre-greased or oil-compatible design reduces maintenance and enables stable operation up to 4,500 rpm. |
| Thrust-Specific Design | Single-row, non-aligning thrust bearing with 0° contact angle—engineered solely for axial load support. |
| Compact Dimensions | 40×68×36 mm fits tight spaces in automotive transmissions, machine tools & hydraulic systems. |
| Vibration Control | Z1V1–Z3V3 graded vibration levels ensure quiet, smooth performance in noise-sensitive applications. |
| Global Compliance | ISO9001:2008 certified—consistent quality control from raw material to final inspection. |
| OEM/ODM Ready | Custom branding, packaging & specs supported—trusted by Tier-1 industrial partners worldwide. |
| In-Stock Availability | Immediate dispatch from China warehouse—no lead time delays for urgent projects. |
| Competitive Edge | BDL offers SKF-equivalent performance at ~30% lower TCO—without compromising on load rating or lifespan. |
Typical Applications: Forklift mast assemblies, CNC rotary tables, gearboxes, centrifugal pumps, and aerospace actuation systems.
Frequently Asked Questions:
• Can it replace SKF 52208? Yes—identical dimensions, load ratings, and mounting interface.
• What’s the dynamic axial load capacity? 42.5 kN (per ISO 76).
• Is it suitable for high-speed use? Yes—optimized cage design supports speeds up to 4,500 rpm (oil lubrication).
Ready to request a quote or technical datasheet? Contact our bearing specialists today—we respond within 2 business hours.
Product Summary
- Product Name
- Bdl 52205-52208 Thrust Ball Bearings – High-Quality, Precision-Made
- Category
- Thrust Ball Bearing
- Brand
- SKF
- Certification
- ISO 9001 · TS 16949
- Lead Time
- 7 Working Days
Get a Custom Quote
Our engineers will respond within 12 hours with a tailored solution.
Request QuoteGeneral Specifications
| Bearing Type | Thrust Ball Bearing |
| Brand | SKF |
| Quality Standard | ISO 9001 / TS 16949 |
| Precision Grade | P0 / P5 / P6 (custom) |
| Material | Chrome Steel / Stainless |
| Cage Material | Steel / Brass / Polyamide |
| Lubrication | Grease / Oil (specify) |
| Operating Temp. | -40°C to +200°C |
| Min. Order Qty | 1 pc (samples available) |
| Prototype Lead Time | 7 Working Days |
Performance Parameters
| Load Capacity | Contact for C0/Cr values |
| Speed Rating | Contact for ndm limit |
| Vibration Level | Z1 / Z2 / Z3 (custom) |
| Noise Level | V1 / V2 / V3 (custom) |
| Fatigue Life | L10h per ISO 281 |
| Sealing Options | Open / Z / 2Z / RS / 2RS |
Custom Specifications Available
Our engineering team can modify bearing dimensions, materials, seals, and clearances to meet your specific operating requirements. Submit your drawing or spec sheet for a tailored proposal.
Wind Power
Main shaft bearings, gearbox bearings, and generator bearings for onshore and offshore wind turbines.
Mining & Quarrying
Heavy-duty bearings for crushers, conveyors, and rotary equipment in extreme dust and shock-load environments.
Steel & Metallurgy
High-temperature bearings for rolling mills, continuous casting, and furnace applications.
Automotive / EV
Wheel hub bearings, transmission bearings, and e-motor bearings for passenger and commercial vehicles.
Rail Transit
Axle box bearings, traction motor bearings, and gearbox bearings meeting EN/UIC railway standards.
Precision Machinery
High-precision spindle bearings, angular contact bearings, and super-precision bearings for CNC and robotics.
Application Design
EngineeringOur engineers analyze your operating conditions -- load, speed, temperature, environment -- and select or design the optimal bearing solution to maximize service life and reduce total cost of ownership.
Custom Modification
7-Day TurnaroundNeed non-standard dimensions, special materials, or modified clearances? We can modify standard SKF bearings or manufacture fully custom solutions with a 7-day prototype turnaround.
Failure Analysis
DiagnosticsWhen bearings fail prematurely, our team conducts root-cause analysis using advanced diagnostic tools to identify the failure mode and recommend corrective action.
Predictive Maintenance
Up to 40% Less DowntimeWe deploy vibration monitoring, thermal imaging, and oil analysis programs that detect bearing deterioration early -- reducing unplanned downtime by up to 40%.
On-site Installation
Global CoverageProper installation is critical to bearing performance. Our certified technicians provide on-site installation support, alignment verification, and operator training worldwide.
Lifecycle Support
Enterprise SLAFrom initial selection through end-of-life, our dedicated account managers provide scheduled maintenance plans, re-lubrication programs, and replacement forecasting for enterprise clients.
