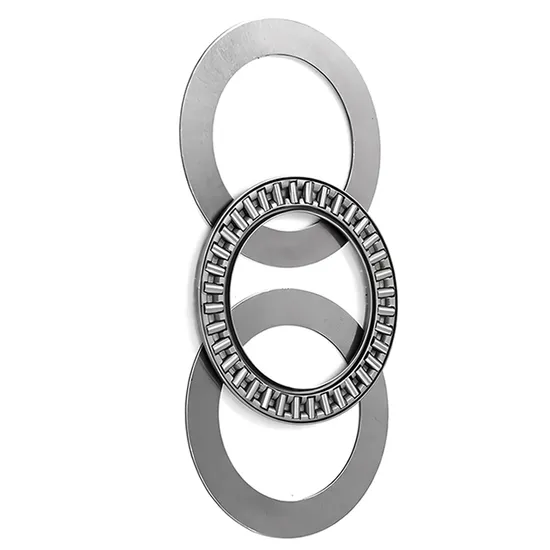

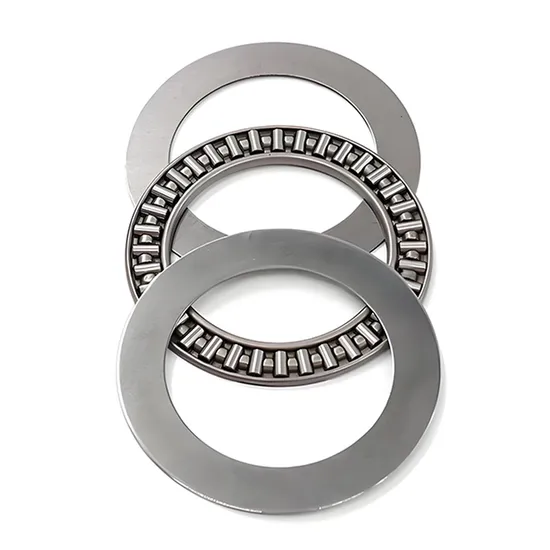

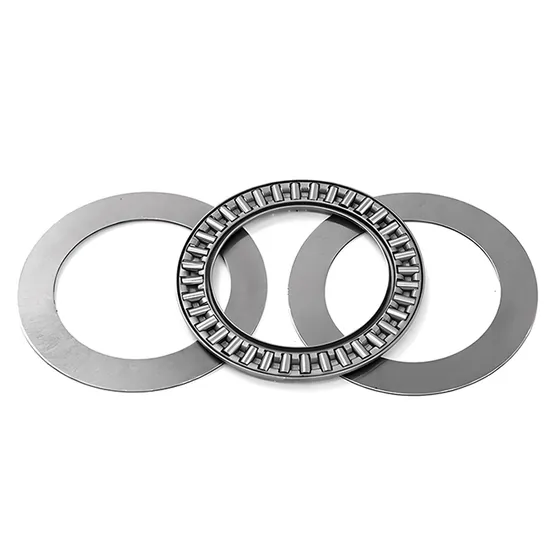

AXK120155–AXK160200 Needle Roller Bearings – High-Load, Compact Design
Basic Info
| Inner Diameter | 120 mm |
|---|---|
| Outer Diameter | 155 mm |
| Thickness | 4 mm |
| Type | Needle Roller Bearing, Closed, Without Outer/Inner Ring |
| Material | Bearing Steel |
| Lubrication | Grease or Oil |
Introduction
AXK120155 is a compact, high-precision needle roller bearing designed for radial loads. Featuring no inner or outer ring, it saves space and weight while maintaining rigidity. Made of premium bearing steel with P0–P2 precision options and C0–C4 clearance, it supports OEM/ODM applications. Delivered in 3–7 days.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Key Specifications & Advantages of SKF-Grade AXK Series Needle Roller Bearings
| Description | Core Value |
|---|---|
| Ultra-thin section (e.g., 120×155×4 mm) | Maximizes space efficiency in compact machinery designs |
| Radial load-only, cage-guided needle rollers | Ensures precise alignment and low friction under high-speed rotation |
| No inner/outer ring design | Reduces weight & cost; ideal for hardened shaft/housing applications |
| GCr15 bearing steel, heat-treated | Delivers exceptional hardness (HRC 60–64) and fatigue resistance |
| P0 to P2 precision grades available | Meets stringent OEM requirements for CNC, robotics & medical devices |
| C0/C3/C4 radial clearance options | Enables thermal expansion compensation in variable-temp environments |
| Grease or oil lubrication compatible | Supports long maintenance intervals and diverse industrial conditions |
| ISO/ABEC-certified manufacturing | Guarantees dimensional accuracy and interchangeability with SKF AXK |
| Made in China — BDL brand, 1M pcs/year capacity | High-volume reliability with traceable QC and ISO 9001 compliance |
| Common applications: gearboxes, automotive transmissions, printing presses, packaging machines | Proven performance where axial space is constrained but radial rigidity is critical |
Unlike generic needle bearings, our AXK series features tighter raceway surface roughness (Ra ≤ 0.2 μm), optimized roller end geometry for reduced edge stress, and 100% noise-tested batches — ensuring quieter, longer service life. All units are pre-lubricated and sealed to prevent contamination during storage or installation.
FAQ: Q: Are these direct replacements for SKF AXK120155? A: Yes — identical dimensions, load ratings, and mounting interfaces. Q: Can they handle shock loads? A: Optimized for steady radial loads; for intermittent shocks, specify C3 clearance. Q: What’s the max operating temperature? A: Up to 120°C with lithium complex grease.
Ready to verify compatibility or request a sample? Contact us today for technical support and fast quotation.
