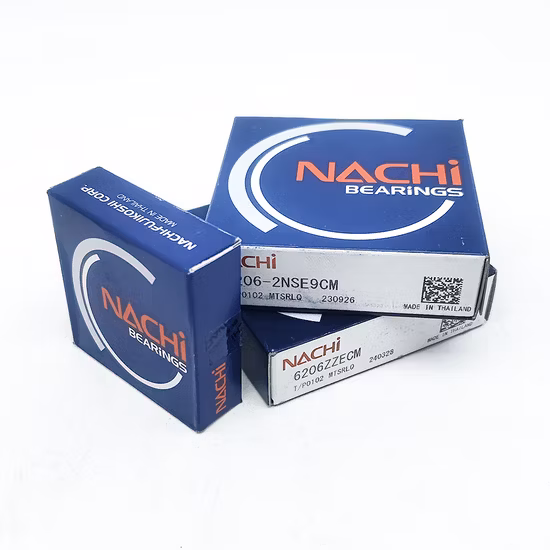

NACHI P6 P5 P4 Deep Groove Ball Bearing 16004 16006 62206 C3 [WARN] draft identifier mismatch

Full Brand Authorization — Consolidate mixed-brand requirements into a single shipment with complete documentation for every thin-section unit.

Technical Specifications

Application Suitability

Why Suffix Accuracy Matters for the X&S 6900 series deep groove ball bearing

Ignoring precision and clearance suffixes turns a standard replacement into a catastrophic failure point.

Procurement teams often match the base number while overlooking critical internal variations. Installing a standard clearance unit in a high-speed motor leads to thermal binding as the shaft expands, causing the bearing to seize completely. Conversely, specifying a P0 grade for a precision spindle introduces unacceptable vibration and runout. These cross-reference errors routinely cause premature downtime because the physical dimensions match, but the internal engineering does not suit the operational environment [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching Thin-Section Profiles to High-Speed Demands

Selecting the correct X&S 6900 series deep groove ball bearing requires balancing space constraints with rotational velocity. The thin-section architecture minimizes weight and envelope dimensions, making it ideal for compact electric motors and precision instruments. However, this reduced cross-section demands rigorous attention to shaft alignment and housing rigidity to prevent raceway distortion under load.

Navigating Thermal Expansion and Lubrication Limits

High-speed machinery generates substantial internal friction, elevating operating temperatures rapidly. A C3 radial internal clearance accommodates this thermal expansion, preventing the rolling elements from binding against the raceways as the inner ring heats up. Lubrication selection is equally critical; oil lubrication dissipates heat effectively at extreme RPMs, while specialized high-speed grease provides reliable protection where external oil circulation is impractical [NEED_CITE: thermal effects on bearing internal clearance].

Decoding Precision Classes and Internal Geometry

The distinction between P6, P5, and P4 precision classes dictates the running accuracy and noise levels of the assembly. Tighter tolerances in P4 and P5 grades ensure minimal radial runout, which is mandatory for high-speed spindles and sensitive instrumentation. Furthermore, the optimized internal geometry of these thin-section units reduces friction torque, allowing the bearing to sustain higher limiting speeds without compromising the structural integrity of the reduced cross-section.

The Hidden Costs of Ignoring Application Parameters

Substituting a standard clearance bearing where a C3 is required inevitably leads to thermal binding and catastrophic seizure. According to failure analysis frameworks like ISO 15243, improper clearance selection accounts for a significant share of premature failures in high-speed applications. The resulting unplanned downtime, secondary damage to shafts and housings, and complete warranty voidance far exceed the initial procurement savings [NEED_CITE: ISO 15243 bearing damage classification].

Securing Authenticity in a Complex Supply Chain

Sourcing thin-section bearings requires strict verification to avoid counterfeits with soft inner rings that fail under load. We provide authorized coverage across major brands, ensuring every unit is backed by batch traceability. Our cross-reference process aligns the base designation, C3 clearance, and P5/P4 precision suffixes precisely, eliminating the guesswork. We also conduct application-based selection reviews to confirm the chosen specification handles the specific speed and thermal profile of your equipment.

Documentation & Authenticity

• Certificate of Conformity validating the specific P6, P5, or P4 precision class for each batch.
• Batch and lot traceability linking every thin-section bearing directly to the manufacturer’s production records.
• QR verification via official brand apps to instantly confirm authenticity and rule out cloned codes.
• Dimensional and running accuracy inspection reports confirming tight tolerances prior to dispatch.
• Country-of-origin documentation ensuring full compliance with international import regulations.

Storage, Handling & Mounting

• Retain original factory packaging to protect the thin-section raceways from humidity and particulate contamination.
• Use clean, lint-free gloves during handling to prevent acidic skin oils from corroding the precision-ground surfaces.
• Employ induction heaters for inner ring mounting to avoid mechanical damage to the reduced cross-section.
• Verify C3 clearance is maintained post-installation by checking for smooth rotation without thermal binding.
• Apply precise grease volumes if re-lubrication is required, avoiding overfilling which causes excessive churning heat.

Engineering Support for Application Matching

To ensure optimal performance, provide your specific radial loads, operational speeds, and maximum operating temperatures for a comprehensive L10 life calculation. Supplying the exact OEM equipment number allows our engineering team to execute a precise cross-reference check, verifying that the clearance and precision suffixes perfectly match your original design requirements.

Frequently Asked Questions

Q: How do I verify the authenticity of these thin-section bearings?
A: Authenticity is confirmed through official brand applications using the QR codes provided on the packaging. This digital verification links the physical unit to the manufacturer’s database, confirming the exact production batch and ruling out counterfeits with cloned codes or substandard metallurgy that frequently plague the thin-section market.

Q: Why is matching the C3 clearance critical during cross-referencing?
A: High-speed applications generate significant internal heat, causing the inner ring to expand. A C3 clearance provides the necessary thermal gap to prevent the rolling elements from binding against the raceways. Installing a standard CN clearance in these conditions leads to rapid thermal seizure and catastrophic equipment failure.

Q: What are the operational differences between P6, P5, and P4 precision?
A: Tighter precision classes like P5 and P4 offer significantly reduced radial runout and dimensional variation compared to P6. This enhanced running accuracy is essential for high-speed spindles and precision instruments where minimal vibration and exact shaft positioning are required to maintain product quality and prevent premature fatigue.

Q: How do I identify counterfeit bearings with soft inner rings?
A: Counterfeit units often exhibit poor surface finishes, irregular stamping fonts, and lack verifiable QR codes. More critically, their inner rings are manufactured from inferior steel that lacks the necessary hardness, leading to rapid wear and brinelling under load. Always demand official dimensional and running accuracy inspection reports to verify material integrity.
