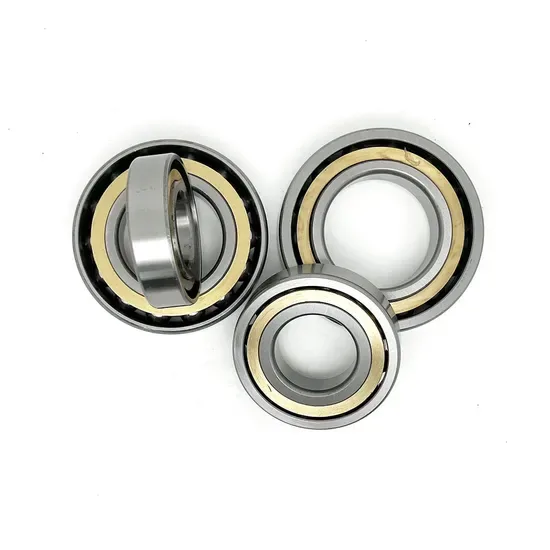

X&S 719/630AC 78/1000X2AC Sn718/850 Angular Contact Ball Bearing [WARN] draft identifier mismatch

Batch Traceability Assurance — Every X&S S718/180 3934D 3944D S7692 S71892AC 7018AC 7218C angular contact ball bearing ships with verifiable manufacturer lot documentation.

Technical Specifications

Note: Prefixes and suffixes such as S (in S718/S7692/S71892AC), X2 (in cross-reference 78/1000X2AC), and n (in Sn718/Sn708) remain unverified and require manufacturer catalog confirmation.

Application Suitability

Why Ignoring the AC Suffix Destroys High-Speed Spindles

Assuming a base number match guarantees interchangeability is the fastest route to thermal seizure.

In my years on the workshop floor in Ningbo, I have seen countless precision spindles fail prematurely because procurement teams matched the base designation but completely overlooked the contact angle and precision suffixes. When a standard 15° contact angle bearing is forced into an application demanding the 25° axial load capacity of an AC variant, the internal load distribution shifts drastically. The rolling elements skid, friction spikes, and the spindle locks up under high-speed operation [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Sourcing the correct X&S S718/180 3934D 3944D S7692 S71892AC 7018AC 7218C angular contact ball bearing requires strict alignment of every suffix, not just the dimensional numbers.

Matching the 25° Contact Angle to Axial Demands

The AC suffix explicitly defines a 25° contact angle, which optimizes the bearing for combined loads where axial forces are significant. When sourcing an X&S S718/180 3934D 3944D S7692 S71892AC 7018AC 7218C angular contact ball bearing for machine tool spindles or high-speed pumps, this specific geometry ensures the load is transferred safely through the raceways. We cross-reference OEM equipment numbers to verify that the 25° angle matches the original design intent, preventing the axial play that causes vibration and poor surface finish in machining operations.

Navigating Thermal and Contamination Challenges

High-speed applications generate substantial internal heat, which directly impacts internal clearance and lubrication film thickness. If the operating temperature approaches the upper limits of standard grease, thermal expansion can eliminate the internal clearance, leading to excessive preload and catastrophic failure. Furthermore, environments like counterbalance forklift mast mechanisms introduce heavy particulate contamination. Selecting the appropriate seal or shield type—such as non-contact Z shields for high-speed spindles to minimize friction, or 2RS contact seals for dusty forklift environments—is critical to maintaining lubrication integrity and preventing ingress [NEED_CITE: bearing seal friction and contamination ingress per ISO 281].

Decoding Precision and Material Options

Precision classes ranging from ABEC1 up to ABEC7 (P0 to P4/SP) dictate the running accuracy and noise levels of the assembly. For precision equipment and machine tool spindles, higher precision grades ensure minimal radial and axial runout, which is essential for maintaining tight machining tolerances. The stainless steel material option provides necessary corrosion resistance for applications exposed to moisture or mild chemical washdowns, though it requires careful load derating compared to standard bearing steel. The availability of both grease and oil lubrication options allows the selection to be tailored to the specific speed and cooling requirements of the spindle or pump design.

The Hidden Costs of Suffix Misalignment

Installing a bearing with an incorrect internal clearance or mismatched contact angle rarely results in immediate, obvious failure; instead, it causes a gradual degradation of performance. Unplanned downtime occurs when the spindle eventually seizes or the pump impeller loses clearance, leading to catastrophic damage to the surrounding housing and shaft. Warranty voidance is common when failure analysis reveals that the installed component did not meet the OEM’s exact suffix specifications. Adhering to ISO 15243 guidelines for failure analysis often traces these premature failures back to basic cross-reference errors during the procurement phase [NEED_CITE: premature bearing failure root causes per ISO 15243].

Why Procurement Teams Rely on Our Technical Verification

Our cross-brand interchange process goes far beyond matching the base designation; we rigorously verify the contact angle, precision class, and seal type to ensure exact functional equivalence. When dealing with complex designations, we identify which specific suffix is most prone to being overlooked by standard catalog searches. Every batch is backed by manufacturer traceability, ensuring that the metallurgical quality and dimensional accuracy meet the stated ABEC standards. We provide application-based selection reviews, analyzing your specific load, speed, and temperature parameters to confirm the chosen variant will survive the operational environment.

Documentation & Authenticity

• Certificate of Conformity confirming the exact ABEC precision class for each batch.
• Manufacturer lot traceability linking the physical bearing to its production run.
• Official app QR verification to instantly authenticate the origin and specifications.
• Material test reports validating the stainless steel grade and heat treatment.
• Dimensional and running accuracy inspection reports proving tolerance compliance.

Storage, Handling & Mounting

• Store the stainless steel variants in original packaging to prevent carbon steel cross-contamination from workshop tools.
• Maintain strict humidity control in storage to preserve the corrosion resistance of the stainless raceways.
• Keep sealed units (2RS/ZZ) in their wrappers until the exact moment of mounting to prevent dust ingress.
• Use induction heating for cylindrical bore installations, monitoring temperature to stay below the +120 ºC limit.
• Verify the AC contact angle marking before pressing to ensure the axial load direction aligns with the spindle design.

Preparing Your Inquiry for Technical Review

To ensure the selected bearing perfectly matches your operational demands, please provide detailed working conditions including radial and axial loads, operational speeds, and expected temperature ranges. Sharing the exact OEM equipment number or the original bearing’s full designation, including all suffixes, allows our engineering team to perform a precise cross-reference and L10 life calculation. If your application involves unusual contamination or specific lubrication constraints, detailing the environment helps us recommend the optimal seal and clearance configuration.

Frequently Asked Questions

Q: Why must cross-referencing include clearance and precision suffixes, not just the base number?
A: Matching only the base number ignores critical internal geometry and tolerance limits. A base match with the wrong clearance causes thermal binding at high speeds, while incorrect precision grades introduce unacceptable runout in spindles. Exact suffix alignment ensures the bearing handles the specific axial loads and thermal expansion of your application without premature failure.

Q: How do ABEC precision classes correlate with ISO P-grade tolerances?
A: ABEC classes define the dimensional and running accuracy of the bearing. ABEC1 corresponds to ISO Normal (P0), ABEC3 to P6, ABEC5 to P5, and ABEC7 to P4. Higher classes like ABEC7/P4 guarantee significantly tighter tolerances for bore, outside diameter, and radial runout, which is mandatory for high-speed machine tool spindles to maintain machining accuracy and minimize vibration.

Q: What is the functional difference between a 25° (AC) and a 40° (B) contact angle?
A: A 25° contact angle, denoted by the AC suffix, offers an optimal balance between radial and axial load capacity, making it ideal for high-speed applications like electric motors and pumps. A 40° contact angle provides substantially higher axial load carrying capacity but generally operates at lower limiting speeds. Selecting the correct angle is critical to prevent internal skidding and excessive heat generation under load.

Q: Where are the operational limits for stainless steel bearings in high-temperature environments?
A: Stainless steel bearings are primarily selected for their corrosion resistance rather than high-temperature performance. While they can operate at elevated temperatures compared to standard carbon steel in corrosive settings, their load-carrying capacity decreases noticeably as heat increases. For applications consistently exceeding standard thermal limits, specialized high-temperature materials or specific clearance adjustments must be evaluated.

Q: How can we verify the batch traceability and authenticity of the delivered bearings?
A: Every shipment includes a Certificate of Conformity and manufacturer lot traceability documents. You can verify authenticity by scanning the provided QR codes using the brand’s official mobile application. This digital verification confirms the production batch, origin, and technical specifications, protecting your equipment from the severe risks associated with counterfeit or substandard components.
