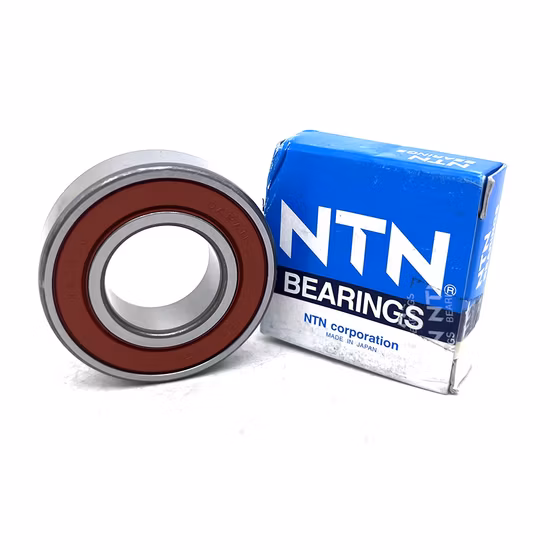

NTN 699 698 697 696 695 Deep Groove Ball Bearing for Agricultural Machinery

Cross-Reference Triad Alignment — Every NTN 699 698 697 696 695 deep groove ball bearing order is verified against base designation, seal configuration, and precision class to prevent field binding.

Technical Specifications

Application Suitability

Why Micro Bearings Seize in Agricultural Dust and Heat

Matching the seal and precision to the exact thermal and particulate environment prevents catastrophic micro-bearing lockups.

In agricultural and light industrial repairs, a significant share of premature failures stems from treating miniature bearings as generic commodities. Procurement teams often match the base number while ignoring critical suffixes, leading to severe operational issues. I have seen batches of 699 bearings installed in high-temperature harvesting equipment seize within days because the wrong internal clearance and shield type were specified. When cross-referencing replacements, overlooking the difference between a non-contact shield and a contact seal invites abrasive dust ingress or excessive friction heat [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the NTN 699 698 697 696 695 Deep Groove Ball Bearing to Target Equipment

Selecting the correct configuration from this miniature series requires balancing friction, contamination exclusion, and rotational accuracy. The NTN 699 698 697 696 695 deep groove ball bearing range covers the critical micro-bore dimensions needed for small shafts in motors and agricultural drives. We review the specific operating environment to ensure the selected seal type and vibration grade align with the equipment’s actual demands, rather than just supplying a generic base number.

Navigating Dust, Heat, and High-Speed Vibration Challenges

Agricultural implements operate in heavily contaminated environments where fine particulate matter easily penetrates inadequate seals. Choosing between ZZ metal shields and 2RS rubber contact seals dictates the balance between dust exclusion and frictional heat generation at higher RPMs. Furthermore, electric motor applications demand strict vibration control to prevent resonance and noise amplification. Thermal expansion in tightly fitted miniature housings also necessitates careful internal clearance selection; a standard clearance will bind under heat, while an expanded clearance prevents shaft lockup [NEED_CITE: thermal expansion effects on bearing internal clearance].

Decoding Seals, Precision, and Vibration Grades

The available seal options define the bearing’s environmental resilience. ZZ shields provide low-friction protection suitable for clean, high-speed motor applications, while 2RS contact seals offer superior exclusion of agricultural dust and moisture at the cost of slightly higher torque. Precision classes ranging from P0 to P4 dictate the dimensional and running accuracy; P4 is essential for high-speed spindle or servo applications where radial runout causes vibration. Additionally, vibration grades from Z1V1 up to Z4V4 classify the acoustic and dynamic smoothness, ensuring that electric motors run quietly without transmitting destructive harmonic frequencies to the surrounding housing.

The Hidden Costs of Ignoring Suffix Details

Specifying a miniature bearing without verifying its suffixes leads to rapid, unplanned downtime. Installing an open or ZZ-shielded bearing in a muddy harvester mechanism results in rapid abrasive wear and raceway spalling. Conversely, forcing a standard clearance bearing into a tight housing under high thermal load causes internal preload spikes, leading to cage failure and shaft scoring. These failures not only destroy the bearing but often damage the mating shaft and housing, voiding equipment warranties and requiring extensive mechanical rework [NEED_CITE: bearing failure analysis per ISO 15243].

Why Source This Series Through Our Engineering Desk

We prevent the common trap of supplying a base number that fails in the field. Our technical team verifies that the requested 695 through 699 designations exactly match the required ZZ or 2RS sealing for your specific dust or moisture exposure. We ensure the precision class aligns with your motor or gearbox speed requirements, avoiding the thermal binding caused by incorrect internal clearances. Every shipment includes full batch traceability, eliminating the risk of counterfeit micro-bearings with soft inner rings that plague the agricultural repair market.

Documentation & Authenticity

• Certificate of Conformity verifying the exact P0 to P4 precision class for each batch.
• Original manufacturer lot traceability linking the micro-bearings to specific production runs.
• Official brand app QR verification to confirm authenticity and rule out cloned codes.
• Dimensional and running accuracy inspection reports validating miniature bore tolerances.
• Material test reports confirming the metallurgical integrity of the bearing steel races.

Storage, Handling & Mounting

• Keep ZZ and 2RS sealed variants in original packaging until mounting to prevent agricultural dust ingress.
• Use clean, lint-free gloves when handling P4 precision micro-bearings to avoid skin acid corrosion on the steel.
• Avoid pressing forces through the rolling elements during installation to protect the miniature raceways.
• Store open variants in climate-controlled environments to preserve the factory-applied防锈 protective coatings.
• Verify shaft and housing tolerances before mounting to prevent internal clearance loss in these small-bore designs.

Technical Review and Selection Inquiry

To ensure the selected micro-bearing survives your specific application, please provide the exact radial loads, operational RPM, and expected temperature ranges. Sharing the OEM equipment number or the complete designation from the removed bearing allows us to perform a precise cross-reference check. This technical review guarantees the seal type, clearance, and precision class are perfectly matched to your agricultural or motor repair requirements.

Frequently Asked Questions

Q: How can I verify the authenticity of these miniature bearings upon delivery?
A: You can verify authenticity by scanning the QR codes on the packaging using the brand’s official mobile application. We also provide original manufacturer batch traceability documents and a Certificate of Conformity. This multi-layered verification process ensures you receive genuine bearing steel components, completely eliminating the risk of counterfeits with soft inner rings that cause premature field failures.

Q: Why must I check the seal suffix when cross-referencing 69x series bearings?
A: Matching only the base number ignores critical environmental protections. A ZZ shield offers low friction for clean, high-speed electric motors, while a 2RS contact seal is mandatory to exclude abrasive dust in agricultural machinery. Installing the wrong seal type leads to either rapid contamination ingress or excessive frictional heat, both of which cause catastrophic micro-bearing lockups and severe shaft damage.

Q: How do Z1V1 and Z4V4 vibration grades affect electric motor applications?
A: The vibration grade dictates the acoustic noise and dynamic smoothness of the rotating assembly. While Z1V1 is acceptable for general agricultural drives, Z4V4 is strictly required for precision electric motors and household appliances. Using a lower vibration grade in a high-speed motor generates excessive resonance, transferring destructive harmonic frequencies to the housing and significantly reducing the overall equipment lifespan.

Q: What is the difference between P0 and P4 precision in high-speed micro applications?
A: P0 is the standard precision suitable for general gearboxes and slow-speed agricultural drives. P4 precision offers strictly controlled dimensional and running accuracy, which is essential for high-speed electric motors and servo spindles. Installing P0 in a high-speed application causes excessive radial runout and vibration, whereas P4 ensures stable, quiet operation and prevents thermal binding at elevated rotational speeds.
