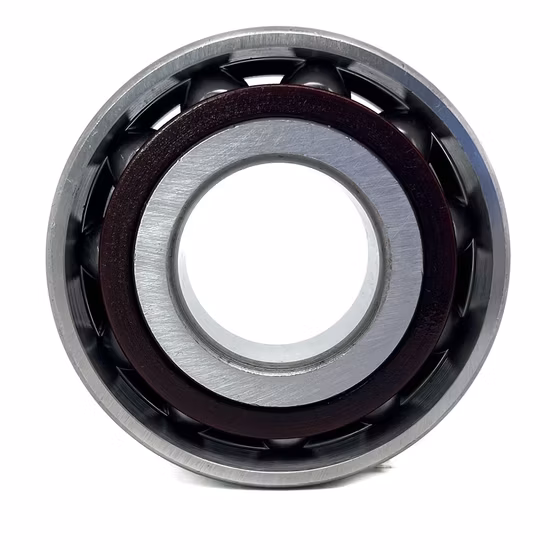

H7011C-2RZ-P4 Angular Contact Ball Bearing for Elevator Traction Machines

Original Batch Traceability — Every H7011C-2RZ-P4 angular contact ball bearing ships with manufacturer-linked lot records for full supply chain transparency.

Technical Specifications

*Note: The 2RZ suffix typically denotes non-contact seals, but exact seal geometry requires manufacturer catalog confirmation for this specific production batch.

Application Suitability

Why Suffix Accuracy Dictates Traction Machine Survival

Matching the exact seal and precision suffix prevents thermal binding in high-speed rotary applications.

Procurement teams frequently source replacement bearings where the base number aligns perfectly, yet the internal seal configuration or precision grade differs from the original equipment requirement. In elevator traction systems, installing a standard P0 grade or a high-friction contact seal instead of the specified P4 precision and non-contact design leads to rapid heat accumulation. This thermal expansion eliminates internal clearance, causing the cage to seize and forcing an unplanned elevator shutdown [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Sourcing the exact H7011C-2RZ-P4 angular contact ball bearing ensures the running accuracy and thermal limits match the traction motor’s operational profile.

Matching Precision to High-Speed Traction Demands

Elevator traction machines demand exceptional rotational stability to ensure smooth cabin movement and minimal vibration. The H7011C-2RZ-P4 angular contact ball bearing delivers the tight dimensional tolerances required for these sensitive drive systems. By strictly verifying the P4 precision class and the specific non-contact seal arrangement during the cross-reference process, we ensure the replacement part mirrors the OEM’s exact dynamic performance criteria.

Navigating Thermal and Contamination Challenges

Traction machine shafts operate at elevated speeds where friction heat generation is a primary concern. The 15° contact angle minimizes sliding friction, while the specialized seal configuration excludes airborne dust without adding significant drag [NEED_CITE: friction torque characteristics of non-contact bearing seals]. If the equipment operates in environments with high humidity or corrosive cleaning agents, selecting the stainless steel variant provides necessary corrosion resistance. Proper grease selection and strict adherence to relubrication intervals are equally critical to prevent lubricant degradation beyond the thermal limit of standard bearing steel.

Decoding the H7011C-2RZ-P4 Engineering Details

The ‘C’ suffix confirms a 15° contact angle, which is optimized for high-speed operation by reducing centrifugal forces on the rolling elements. The ‘P4’ designation guarantees ISO Class 4 running accuracy, ensuring that radial and axial runout remain within strict limits to prevent vibration in precision spindles. The ‘2RZ’ suffix indicates a non-contact sealing arrangement, a vital feature for applications where contact seals would generate excessive friction heat at high RPMs. When evaluating material options, the stainless steel variant offers substantially higher resistance to moisture and mild chemical exposure compared to standard bearing steel, making it suitable for specific environmental conditions.

The Hidden Costs of Incorrect Suffix Selection

Substituting a bearing with an incorrect clearance or precision grade rarely causes immediate failure, but it drastically accelerates fatigue. According to ISO 281 standards, even minor deviations in running accuracy or internal clearance can severely reduce the calculated L10 life under combined loading [NEED_CITE: life calculation methods per ISO 281]. A mismatched seal type might protect against contaminants but could generate enough friction heat to degrade the grease, leading to premature cage failure and catastrophic damage to the traction machine shaft.

Why Procure This Designation Through Our Network

Our authorized multi-brand distribution network allows you to consolidate mixed-brand requirements into a single, traceable order. We specifically check the ‘2RZ’ and ‘P4’ suffixes during cross-referencing, ensuring you do not receive a base-match bearing with incompatible internal geometry. Every batch is linked to the manufacturer’s production facilities, providing full lot traceability that protects your supply chain from counterfeits. Furthermore, our technical team reviews your application parameters to confirm that the selected precision and seal type align with your specific thermal and load conditions.

Documentation & Authenticity

• Certificate of Conformity validating the P4 precision grade and material origin.
• Batch and lot traceability records linked directly to the manufacturer’s production run.
• QR verification support via the brand’s official application for instant authenticity checks.
• Dimensional and running accuracy inspection reports confirming ISO Class 4 tolerances.
• Material test reports verifying the chemical composition of the selected steel variant.

Storage, Handling & Mounting

• Keep the original packaging sealed until mounting to protect the P4 precision raceways from ambient moisture and dust.
• Use clean, lint-free gloves when handling to prevent skin acids from etching the high-accuracy bearing surfaces.
• Employ induction heating for inner ring mounting, strictly avoiding open flames that could compromise the grease or seal materials.
• If the stainless steel variant is selected, use dedicated stainless tooling to prevent cross-contamination from carbon steel particles.
• Verify the non-contact seal integrity post-mounting to ensure no debris entered the 2RZ seal gap during installation.

Technical Review and Selection Support

To ensure optimal performance, please provide your specific radial and axial load profiles, operational speeds, and expected temperature ranges. Sharing the OEM equipment number allows our engineering team to perform a precise cross-reference check, verifying that the internal design and suffix configuration perfectly match your machinery’s requirements.

Frequently Asked Questions

Q: What is the difference between 2RZ and 2RS seals in high-speed traction applications?
A: The 2RS designation typically indicates contact seals, which provide excellent contamination exclusion but generate higher friction heat. The 2RZ configuration generally refers to non-contact seals, offering a crucial balance by keeping out large particles while minimizing friction torque, making it far more suitable for the high-speed shafts found in elevator traction machines and precision spindles.

Q: How can I verify the P4 precision before installation?
A: Authentic P4 bearings are accompanied by a dimensional and running accuracy inspection report from the manufacturer. You can verify the physical product by scanning the packaging QR code through the brand’s official application. This confirms the batch traceability and ensures the tight tolerances required for vibration-free spindle operation are genuinely met.

Q: Why must the contact angle and precision suffix align during cross-referencing?
A: A base number match is insufficient because the ‘C’ suffix dictates a 15° contact angle, optimizing the bearing for high-speed axial loads. If a cross-reference substitutes a 25° or 40° angle, or drops the P4 precision for a standard P0 grade, the bearing will exhibit excessive vibration and thermal growth, leading to rapid failure in sensitive elevator or machine tool applications.

Q: What mounting practices are required for elevator traction bearings?
A: Mounting must be performed in a clean environment to protect the P4 precision raceways. Use controlled induction heating for the inner ring rather than mechanical force, which can brinell the raceway. Ensure the shaft and housing tolerances match the manufacturer’s specifications to prevent altering the internal clearance and compromising the non-contact seal performance.
