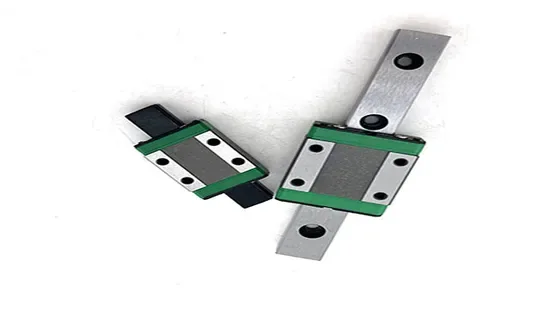

X&S HGH20CA HGH25CA Linear Guide Block for Automation SBR TBR Cross-Reference

Verified via official apps — Every X&S linear guide block ships with a scannable QR code linking directly to the manufacturer’s authenticity database.

Technical Specifications

Note: The CA and HA designations act as unverified suffixes that require manufacturer catalog confirmation for exact carriage geometry.

Application Suitability

Why Base Numbers Mislead Automation Engineers Seeking an X&S HGH20CA linear guide block supplier

Base designations rarely capture the full carriage geometry required for high-speed automation.

Procurement teams frequently source replacement blocks by matching the primary model number, only to discover that the internal ball row configuration or flange thickness differs from the original equipment. This oversight causes binding on the rail and premature wear. [NEED_CITE: linear motion failure modes related to geometric mismatch]. Finding a reliable X&S HGH20CA linear guide block supplier means securing a partner who verifies the complete suffix string, ensuring the replacement block matches the exact preload and mounting dimensions of your existing setup.

Matching Guide Blocks to High-Speed Automation Strokes

Integrating the correct X&S HGH series block into an automated gantry requires evaluating the specific stroke length and acceleration profiles. We cross-reference the requested part number against the machine’s dynamic loads to confirm the carriage can handle the inertial forces at the ends of the stroke. This application-based selection review prevents the subtle tracking errors that degrade product quality on high-speed assembly lines.

Environmental Demands on Linear Motion Tracks

Automated systems operating in washdown or humid environments demand high corrosion resistance to prevent track pitting. The choice between grease or oil lubrication directly impacts maintenance intervals; oil systems dissipate heat better during continuous high-speed cycles, while grease provides longer retention in sealed carriages. [NEED_CITE: lubrication degradation in linear motion systems]. Furthermore, the solid profile construction must resist particulate ingress, which acts as an abrasive and accelerates carriage wear.

Decoding the Solid Profile and Carriage Geometry

The solid profile bearing steel construction provides the necessary rigidity for precision automated movements, minimizing deflection under light to moderate loads. The polished surface treatment reduces friction coefficients, facilitating the high-speed feature essential for modern packaging and electronics manufacturing. While the standard carriage lengths suit most gantry designs, customized lengths are available to distribute loads across a wider footprint. The single row configuration keeps the block compact, though engineers must carefully evaluate the moment loads to avoid over-stressing the carriage wings.

The Hidden Costs of Incorrect Linear Guide Selection

Installing a guide block with the wrong internal clearance or carriage height leads to uneven load distribution across the rolling elements. According to failure analysis frameworks outlined in ISO 15243, this localized stress causes premature spalling on the raceway and eventual carriage seizure. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Such unplanned downtime on a critical automation cell halts the entire production line, resulting in substantial financial losses far exceeding the cost of the correctly specified component.

Why Our Technical Verification Matters

We review the complete designation, including flange types and block lengths, rather than just the base model, preventing the geometric mismatches that cause rail binding. Our inventory provides batch traceability to the manufacturer, ensuring every block originates from authorized production facilities. When your application requires switching from an HGH block to an SBR20 or TBR16 round rail system, we calculate the equivalent load ratings to maintain system stability. We also supply dimensional and running accuracy inspection reports before bulk shipment, confirming the carriage meets the required tolerances for your automated equipment.

Documentation & Authenticity

• Certificate of Conformity verifying CE compliance for automated machinery integration.
• Batch and lot traceability linking each block to its specific production run.
• Official app QR verification confirming the genuine origin of the X&S components.
• Material test report validating the bearing steel grade and corrosion resistance treatments.
• Dimensional and running accuracy inspection report confirming carriage tolerances prior to dispatch.
• Country-of-origin documentation facilitating smooth customs clearance for international buyers.

Storage, Handling & Mounting

• Retain the factory anti-corrosion coating on the solid profile blocks until immediately before mounting.
• Use lint-free cleanroom gloves when handling polished surfaces to prevent acidic sweat from causing localized rust.
• Ensure the rail and block are perfectly aligned during installation to avoid inducing internal preload stresses.
• Apply the specified grease or oil lubrication to the carriage nipples if the blocks were stored for extended periods.
• Keep customized length blocks in their original packaging to protect the machined mounting surfaces from impact damage.

Preparing Your Technical Inquiry

To ensure precise selection, please provide the radial and axial loads, maximum traverse speeds, and operating temperatures for your automation equipment. If you are replacing existing components, share the exact OEM equipment number or the full designation string from the current carriage nameplate. For cross-referencing to alternative rail systems like the SBR or TBR series, detail the available mounting space and required rigidity so our engineering team can verify the interchangeability.

Frequently Asked Questions

Q: How do I align carriage clearance and preload when cross-referencing linear guide blocks?
A: Preload directly affects rigidity and friction. When cross-referencing, you must match the original block’s preload class, not just the external dimensions. Installing a heavier preload than the machine requires increases friction and heat, while a lighter preload introduces play. Always verify the exact suffix and manufacturer catalog data to ensure the internal geometry matches your automation requirements.

Q: What are the common failure modes of linear guides in high-speed automation equipment?
A: In high-speed applications, inadequate lubrication and particulate contamination are primary failure drivers. Insufficient oil or grease leads to thermal expansion and cage failure, while dust ingress causes raceway spalling. Ensuring the correct seal type and adhering to strict relubrication intervals based on the carriage’s operational duty cycle significantly extends the service life of the guide block.

Q: How do I select between standard and customized lengths for specific automation strokes?
A: Standard lengths suit typical gantry loads, but customized longer blocks distribute forces over a greater rail contact area. This is crucial when the carriage experiences high moment loads during rapid acceleration or deceleration. Evaluate the maximum payload and the distance between mounting holes to determine if a longer carriage is necessary to prevent tipping or edge-loading on the rail.

Q: What is the recommended lubrication and maintenance cycle for HGH series blocks?
A: The cycle depends heavily on the operating speed, load, and environmental cleanliness. High-speed automated tracks typically require more frequent oil or grease replenishment to prevent thermal degradation of the lubricant. Monitor the carriage temperature and listen for changes in acoustic noise; an increase in either indicates the lubricant film is breaking down and immediate maintenance is required.

Q: How to verify the authenticity and country-of-origin for imported linear motion components?
A: Authentic components feature precise laser-etched markings and include a scannable QR code that links to the manufacturer’s official verification database. Request the Certificate of Conformity and country-of-origin documentation from your supplier before shipment. Counterfeit blocks often have poorly machined mounting surfaces and soft inner materials that fail under operational loads.
