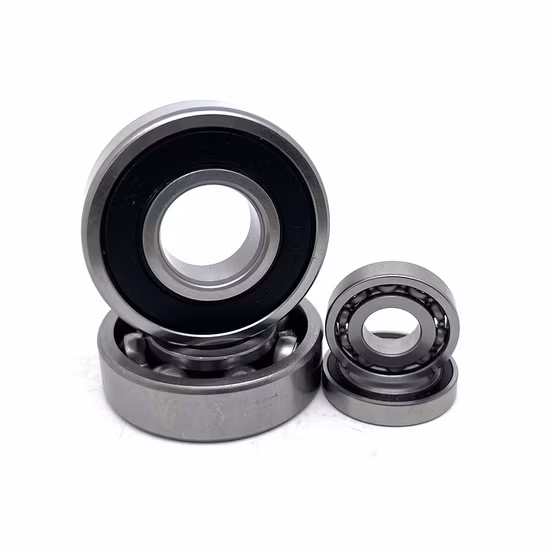

X&S 6820 6819 6818 6817 6816 6815 Deep Groove Ball Bearing Authorized Supplier

Factory Batch Traceability — Every X&S thin-section unit ships with verifiable lot documentation linked to the original manufacturing run.

Technical Specifications

Application Suitability

Suffix Errors That Cause X&S 6820 6819 6818 6817 6816 6815 Deep Groove Ball Bearing Field Failures

Base number alignment without suffix verification guarantees premature thermal binding.

I have seen entire production lines halt because a batch of 6817 bearings had the correct outer dimensions but shipped with CN clearance instead of the required C3. In thin-section designs, the minimal material mass leaves zero margin for thermal expansion errors, causing the inner ring to grip the shaft tightly once the motor reaches operating temperature. Sourcing channels that ignore these critical suffixes frequently supply cloned QR codes and soft inner rings that pass casual visual checks but fail catastrophically under load [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching Thin-Section Profiles to Precision Demands

Selecting the right X&S 6820 6819 6818 6817 6816 6815 deep groove ball bearing requires looking past the basic 68 series designation to evaluate the exact operating environment. Our technical review process ensures that the chosen seal type and precision grade align perfectly with the equipment’s rotational speed and contamination exposure. This prevents the common procurement error of installing open bearings in dusty environments or using standard P0 grades in high-speed spindles.

Navigating Friction and Contamination Constraints

The physical constraints of extra thin-section bearings dictate strict trade-offs between sealing effectiveness and rotational friction. ZZ shields provide non-contact protection ideal for high-speed electric motors where heat generation must be minimized, while 2RS contact seals offer superior defense against moisture and particulate ingress for agricultural or outdoor conveyors. Selecting the wrong seal type drastically alters the internal thermal equilibrium, especially when combined with inappropriate grease fill volumes or incorrect vibration grading like Z1V1 in noise-sensitive robotics [NEED_CITE: bearing friction and thermal limits per ISO 281].

Decoding Vibration Grades and Precision Tolerances

The transition from P0 to P4 precision fundamentally changes the running accuracy and dimensional stability of thin-section races. Higher precision classes minimize the microscopic runout that causes vibration in delicate optical instruments. Similarly, specifying Z3V3 or Z4V4 acoustic grading ensures the internal geometry and cage design are optimized for ultra-quiet operation. These suffixes are not mere catalog additions; they represent strict manufacturing controls over raceway roundness and surface finish that directly dictate the operational smoothness of the final assembly.

The Hidden Costs of Ignoring Clearance Classes

Installing a standard clearance bearing in an application demanding thermal expansion compensation leads to unplanned downtime and catastrophic damage to surrounding housings. When the internal clearance collapses under operating temperatures, the rolling elements skid rather than roll, rapidly degrading the raceway. This failure mode voids equipment warranties and forces expensive emergency replacements, highlighting why strict adherence to ISO 15243 failure analysis principles is mandatory during the initial selection phase [NEED_CITE: thermal expansion effects on bearing clearance].

Engineering Support for Mixed-Brand Environments

Managing mixed-brand requirements across a facility often leads to cross-reference errors where the base designation matches but the internal cage design differs. We align clearance, cage material, and precision suffixes simultaneously, ensuring that a replacement unit behaves identically to the original specification. This rigorous cross-referencing prevents the subtle mismatches that cause thermal binding in tightly toleranced thin-section applications.

Documentation & Authenticity

• Certificate of Conformity verifying the specific P0 through P4 precision grade for each batch.
• Batch and lot traceability linking every thin-section unit to its original manufacturing run.
• QR verification via official brand applications to expose cloned codes on counterfeit soft rings.
• Dimensional and running accuracy inspection reports confirming Z3V3 or Z4V4 acoustic limits.
• Material test reports validating the metallurgical integrity of the bearing steel races.

Storage, Handling & Mounting

• Retain original packaging to protect the thin-section races from humidity and physical deformation.
• Use clean gloves when handling open variants to prevent skin acids from corroding the bearing steel.
• Avoid pressing forces through the rolling elements during installation to prevent brinelling the thin races.
• Verify the specific grease type in 2RS sealed units before installation to ensure chemical compatibility.
• Store away from direct sunlight to prevent the degradation of 2RS rubber contact seals.

Preparing Your Technical Inquiry

To facilitate an accurate technical review, please provide the specific radial and axial loads, operating speeds, and thermal conditions of your application. Supplying the exact OEM equipment number allows our engineering team to perform a comprehensive cross-reference check, ensuring the clearance and seal suffixes match your operational requirements perfectly.

Frequently Asked Questions

Q: How can I verify the authenticity of these thin-section bearings and avoid counterfeits?
A: Counterfeiters often clone QR codes and use soft inner rings that pass visual checks. We supply fully traceable units with batch documentation. You can verify authenticity by scanning the QR codes through the official brand mobile applications, ensuring the metallurgical integrity and dimensional accuracy match the original manufacturer’s specifications.

Q: Why is it critical to match clearance and precision suffixes during cross-referencing?
A: Matching only the base 68 series number ignores vital internal geometry. Installing a CN clearance where C3 is required causes thermal binding in electric motors, while using P0 precision in a robotic joint introduces unacceptable runout. Exact suffix alignment ensures the bearing handles the specific thermal expansion and accuracy demands of your equipment.

Q: What are the practical differences between P6, P5, and P4 precision classes in this series?
A: Higher precision classes like P5 and P4 offer significantly tighter dimensional and running accuracy compared to standard P6. This reduced runout is essential for high-speed spindles and precision instruments, minimizing vibration and ensuring smooth operation where microscopic deviations would otherwise cause premature fatigue or acoustic noise issues.

Q: How do I choose between ZZ shields and 2RS seals for my specific operating environment?
A: ZZ shields provide non-contact protection, minimizing friction and heat generation, which is ideal for high-speed electric motors. Conversely, 2RS rubber seals offer superior contact sealing against moisture and heavy particulate contamination, making them the necessary choice for conveyors or gearboxes operating in harsh, dirty environments.
