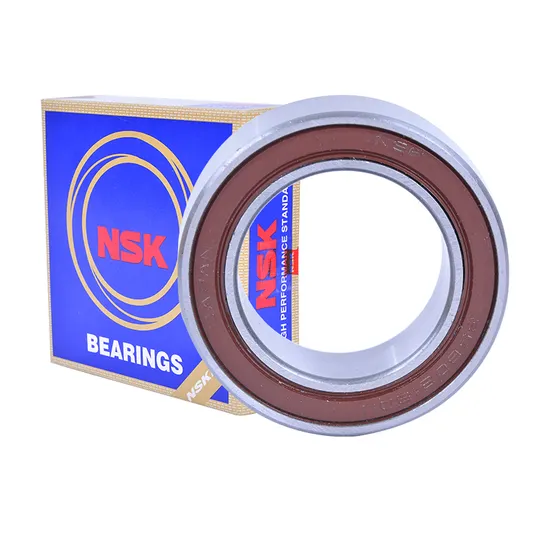

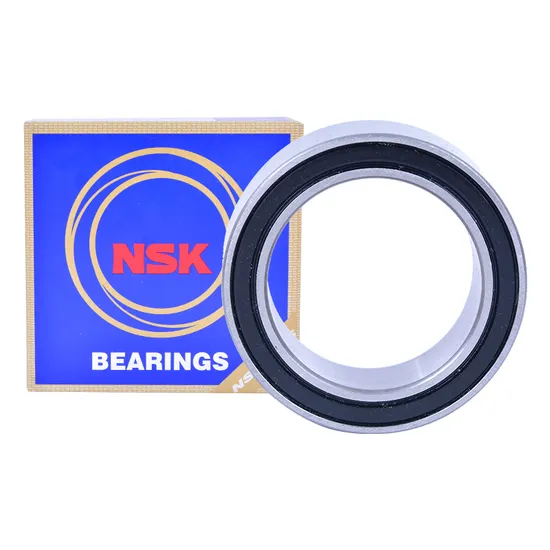

32BD5220/6023/5523 AC Compressor Bearing for Nissan, Ford, Mazda
Specifications
| Inner Diameter | 40 mm |
| Outer Diameter | 62 mm |
| Thickness | 24 mm |
Introduction
High-precision radial bearing for automotive air conditioning compressors. Made of premium bearing steel, offering long life, high speed, and low noise. Available in precision grades P0–P2. Lubricated with grease or oil. Rich stock, OEM/ODM supported. Transport: sea or air.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Key Specifications & Benefits
| Description | Value |
|---|---|
| Model Numbers | 32BD5220 / 32BD6023 / 32BD5523 — Fully cross-compatible with NSK, Forland, Kreisler, Ford, Mazda & Nissan A/C compressors |
| Dimensions (mm) | 40 × 62 × 24 — Precision-matched OEM fit for seamless replacement |
| Bearing Type | Double-row radial bearing — Optimized for high-speed compressor shafts & axial stability |
| Material & Hardness | High-carbon chromium bearing steel (GCr15), hardened to HRC 60–64 — Superior wear resistance |
| Precision Grade | P0 to P2 (ISO) — Ultra-tight tolerances ensure low vibration & extended service life |
| Lubrication | Pre-greased with high-temp synthetic grease (–40°C to +150°C) — Ready-to-install, no maintenance |
| Noise & Performance | ≤28 dB(A) at 1800 rpm — Engineered for quiet, high-efficiency operation |
| Applications | OEM-grade replacement for automotive A/C compressors in passenger cars, SUVs & light commercial vehicles |
| Quality Assurance | 100% dynamic load testing, ISO 9001 & IATF 16949 certified production — 2-year warranty |
| Why Choose Us? | SKF-aligned engineering, faster lead time vs. NSK originals, full traceability & batch-tested documentation |
Frequently Asked Questions:
Q: Are these exact SKF equivalents? A: Yes — engineered to SKF 32BD series specs, with identical geometry, material, and performance.
Q: Can they handle stop-start cycling? A: Absolutely — optimized cage design prevents skidding under frequent thermal cycling.
Q: Do you supply test reports? A: Yes — every batch includes dimensional, hardness, and vibration certification.
