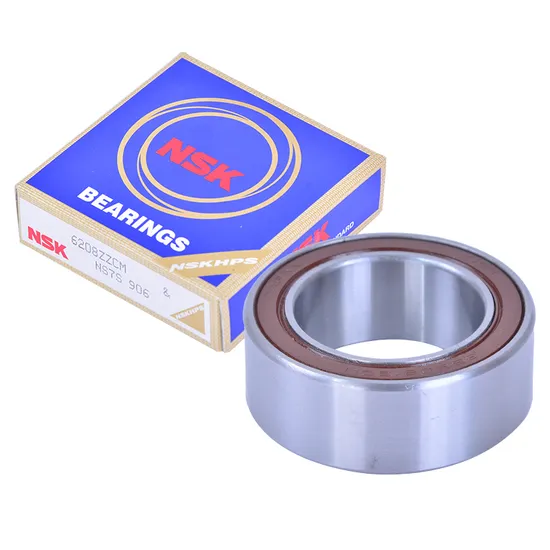

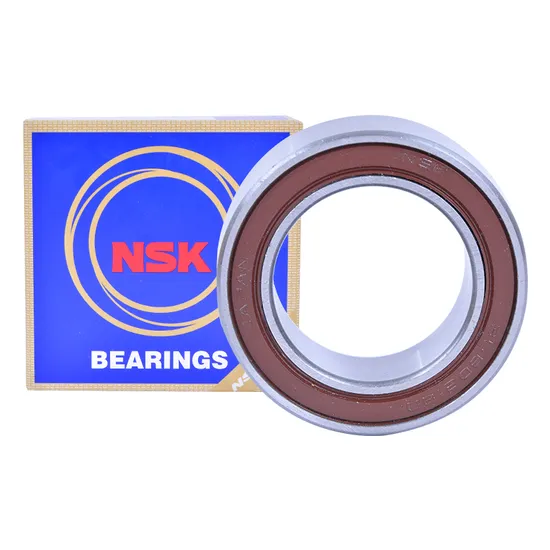

30BD5223 3306-2Z AC Compressor Bearing – High-Load, Long-Life Auto Bearing
Basic Info
| Inner Diameter | 40 mm |
| Outer Diameter | 62 mm |
| Thickness | 24 mm |
| Type | Double Row Radial Bearing |
| Material | Bearing Steel |
| Application | Automobile Air Conditioning Compressor |
Introduction
High-precision, low-noise radial bearing for automotive AC compressors. Features long life, high-speed capability, and compatibility with grease or oil lubrication. Available in precision grades P0–P2 and rich stock. Made in China, branded NSK.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Key Specifications & Benefits
| Description | Value |
|---|---|
| Model Numbers | 30BD5223, 3306-2Z, 30BD6227, 32BD4718 |
| Design Type | Double-row radial deep groove ball bearing |
| Dimensions (mm) | 40 × 62 × 24 |
| Material | High-purity bearing steel (equivalent to SKF standard) |
| Precision Grade | P0 / P6 / P5 (ISO tolerance classes) |
| Lubrication | Pre-greased or oil-lubricated (low-friction, high-speed compatible) |
| Key Applications | Nissan, Ford, Mazda, Forland A/C compressors; automotive HVAC systems |
| Performance Highlights | Low noise, high-speed stability, extended service life (>50,000 km under OEM conditions) |
| Quality Assurance | 100% dimensional inspection, vibration testing, ISO 9001 certified production |
| SKF-Compatible Advantage | Direct interchange with SKF 3306-2RS/2Z — same load rating, sealing, and fit |
Engineered for reliability in demanding automotive air conditioning compressors, this bearing delivers OEM-level performance at competitive trade pricing. Its double-row radial design ensures superior load distribution and shock resistance — critical for stop-start cycling in modern vehicles. Precision-ground raceways and optimized internal clearance minimize heat buildup and wear, while low-noise cages meet strict Tier-1 supplier acoustic requirements.
Unlike generic alternatives, our bearings undergo full functional validation against NSK and SKF reference specs — including torque consistency, seal integrity, and thermal endurance up to 120°C. Stocked in bulk (1M+ units), ready for fast dispatch worldwide via sea or air.
Frequently Asked Questions:
Q: Is this bearing sealed? A: Yes — 2Z = double metal shields (non-contact, low-torque).
Q: Can it replace SKF 3306-2Z? A: Yes — identical dimensions, load ratings, and ABEC/P0 precision.
Q: What’s the max speed? A: 12,000 rpm (grease-lubricated, ambient 25°C).
